BMK4

BMK4

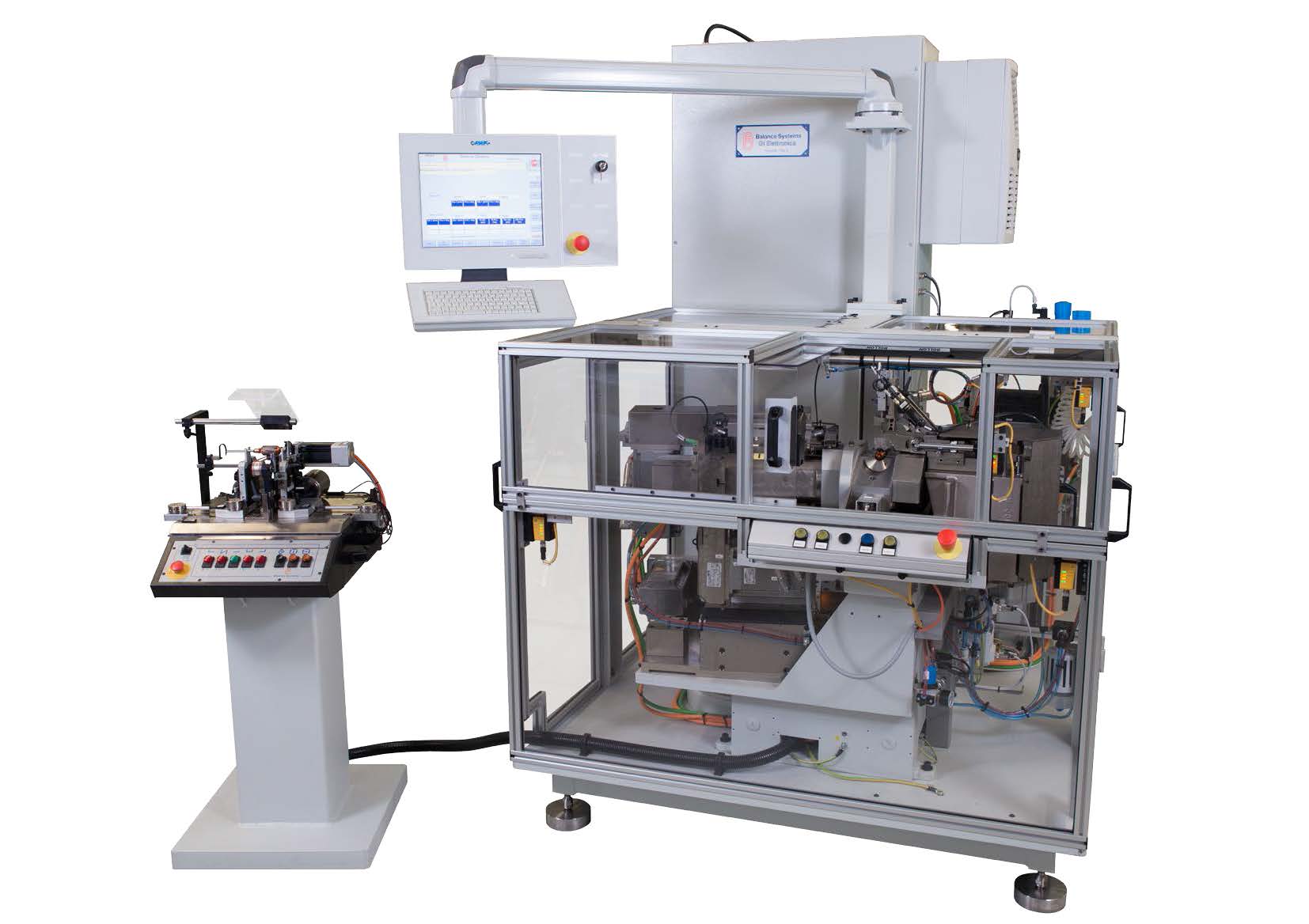

Semi-Automatic balancing machine

Features
  • Semi-automatic balancing machine for electric motors armatures.
  • Composed of: measuring unit, milling unit for left and right planes and audit unit (optional).
  • Standard configuration with milling in length and depth.
  • The machine can be delivered (upon request) with milling tools for polar or small part machining.
  • Operator interface by industrial PC.
Advantages

  • Compact dimension
  • High measuring precision
  • High balancing precision
  • User friendly
  • Quick return on investment

Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for universal washing machine motors, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Fuel pump armatures, Home appliances, HVAC armatures, Industrial electric motors, Power Tools, Power tools armatures, Starter motors armatures

Product Description

Technical data
Max armatures weight: 3 kg (6,61 lb)
Armature diameter: 10-85 mm (0,39-3,35 in)
Stack lamination height: 10-120 mm (0,39-4,72 in)
Machine cycle time: < 10 s plus operator handling time
Controlled by: Industrial PC
Measuring accuracy: 0.1 gmm/kg max (0.04 oz.in/lb)
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 1700 x 1400 x 2200 mm (66,93×55,12×86,61 in)



Options
Industrial vacuum system for milling chips
SPC/SW
Printer
Device for skewed slots armatures (-16°/+16°)
Devices for quick changeover
Audit unit
Robot interface for automatic loading/unloading

Additional Information

Tipo di automazione

Semi-automatic
