BMK4-A

BMK4-A

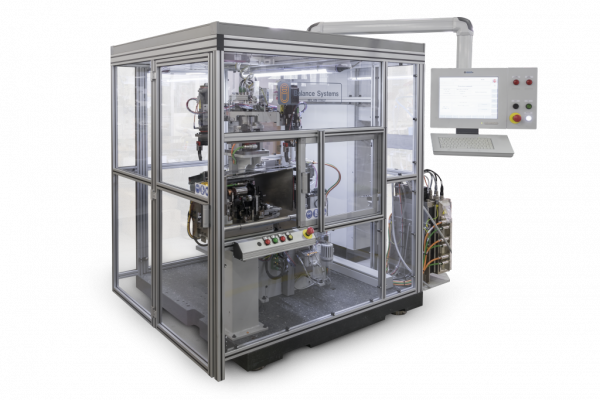

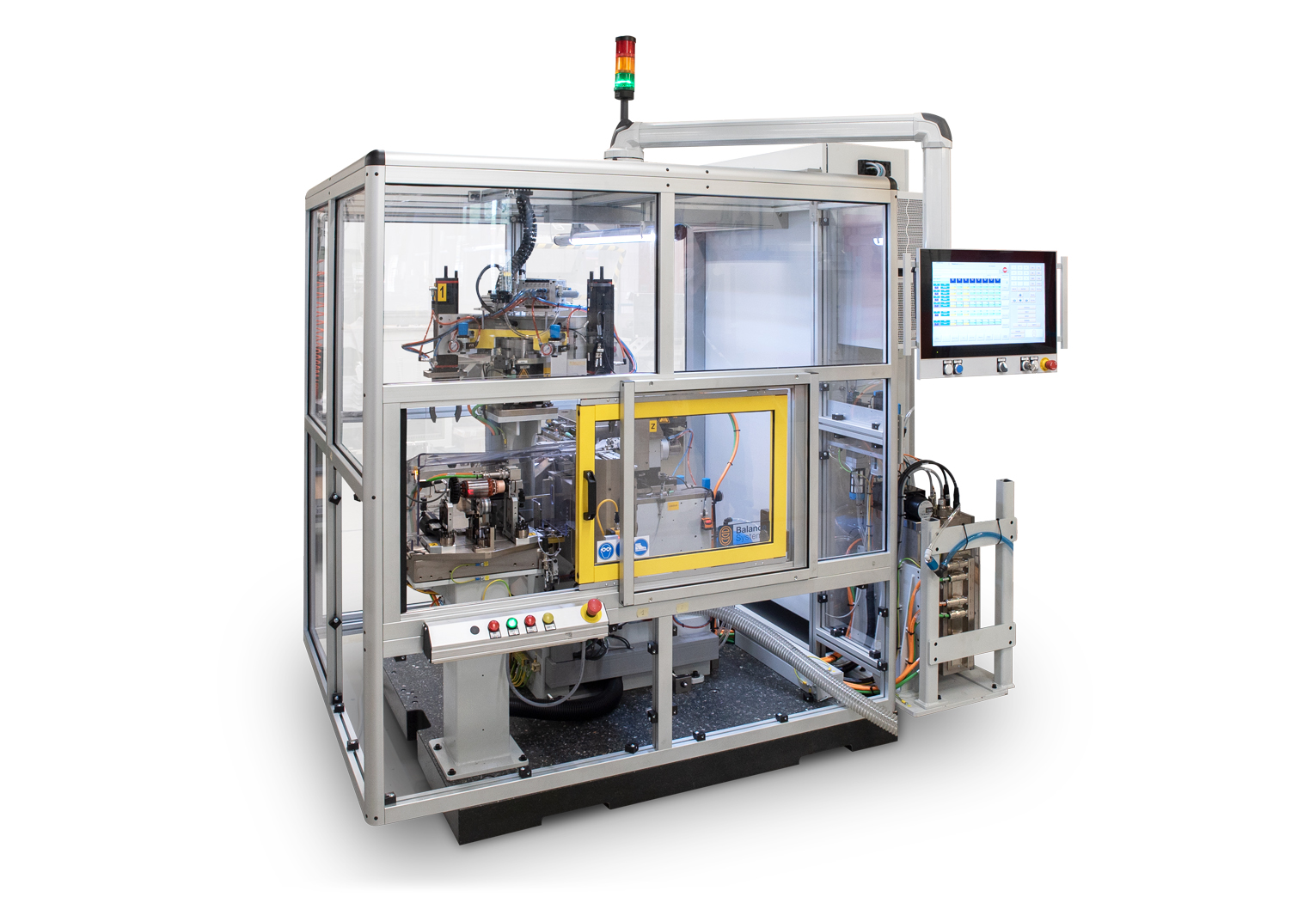

Semi-Automatic balancing machine

Features
  • Semi-automatic balancing machine for electric motors armatures.

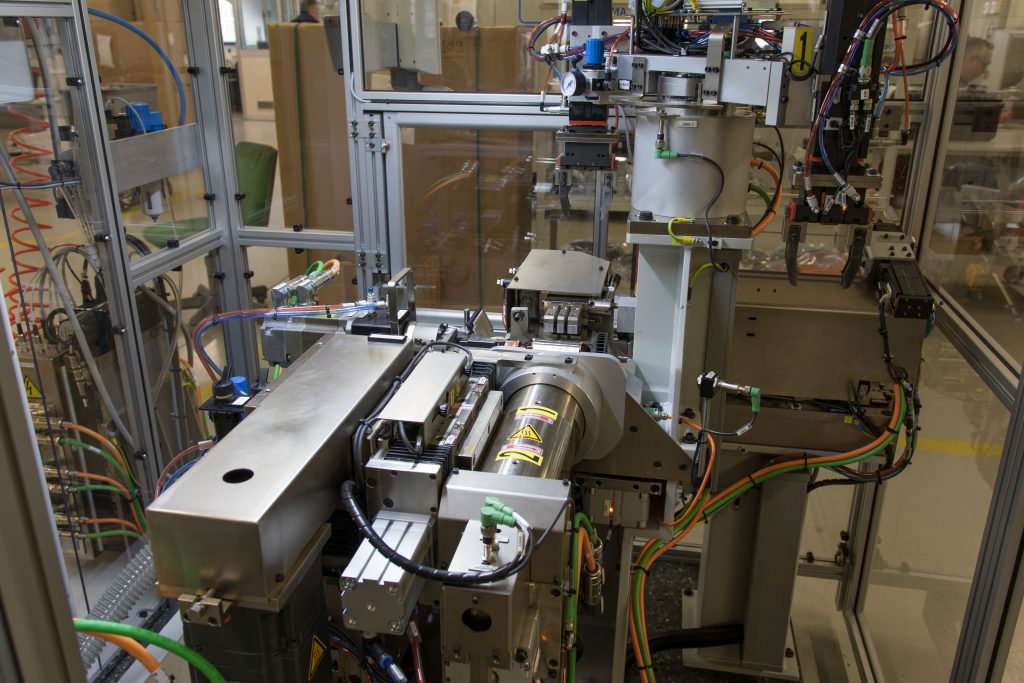

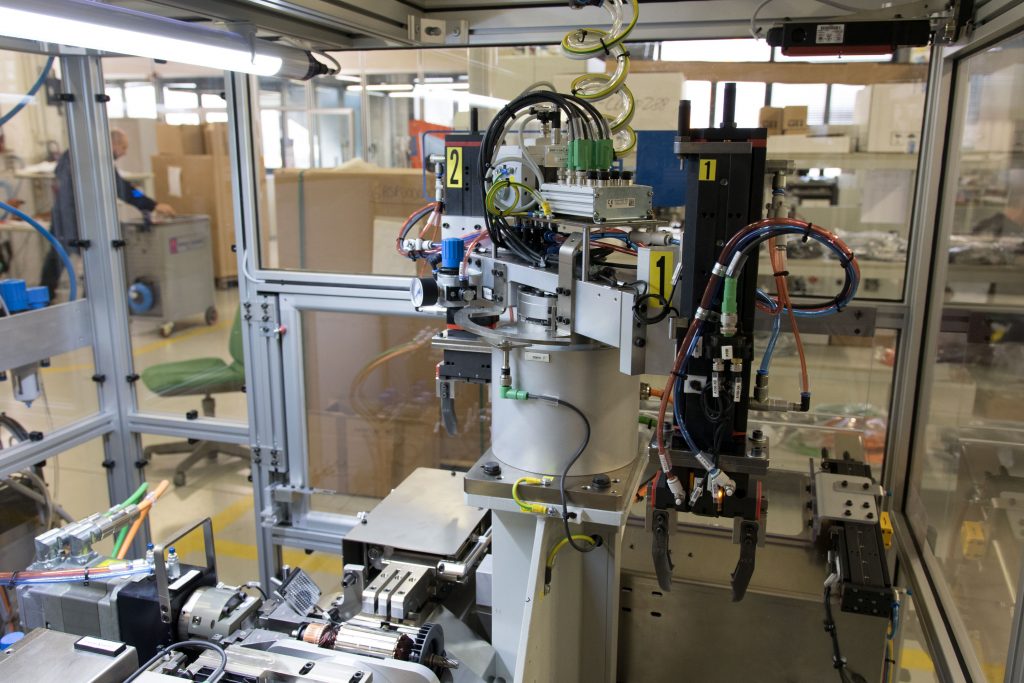

  • Composed of: measuring unit, milling unit for left and right planes and pneumatic pick and place for the manipulation of the parts (from measuring unit to milling unit and vice versa) to audit the balanced armatures.
  • Standard configuration with milling in length.
  • The machine can be delivered (upon request) with components or polar milling tools.
  • Manual loading / unloading.
Advantages

  • Highly skilled operator not required

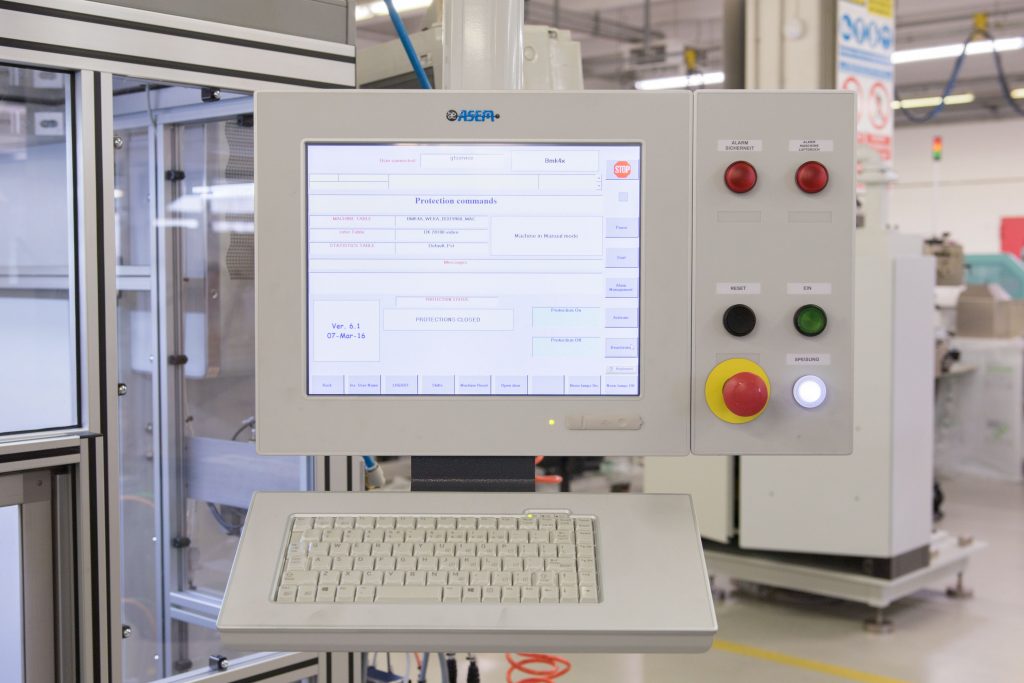

  • PC based operator interface
  • Easy to maintain
  • Diagnostic and preventive maintenance programs
  • High level of repeatability and precision of the unbalance
  • Compact dimension
  • User friendly

Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for universal washing machine motors, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Fuel pump armatures, Home appliances, HVAC armatures, Industrial electric motors, Power Tools, Power tools armatures, Starter motors armatures

Product Description

Technical data
Max armatures weight: 3 kg (6,61 lb)
Armature OD: 10-85 mm (0,39-3,35 in)
Stack lamination height: 10-120 mm (0,39-4,72 in)
Machine cycle time (measuring, milling, re-cheking): 15 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg (0,04 oz.in/lb)
Balancing methods: Vectorial, polar, milling in length and depth
Machine dimensions (LxWxH): 1950 x 1500 x 2000 mm (76,77 x 59,06 x 78,74 in)



Options
Modem
SPC/SW and printer
Vacuum system to remove the milling chips
Device to balance skewed slots
Device to balance armatures with ball bearing

Additional Information

Tipo di automazione

Semi-automatic
