BMK5

BMK5

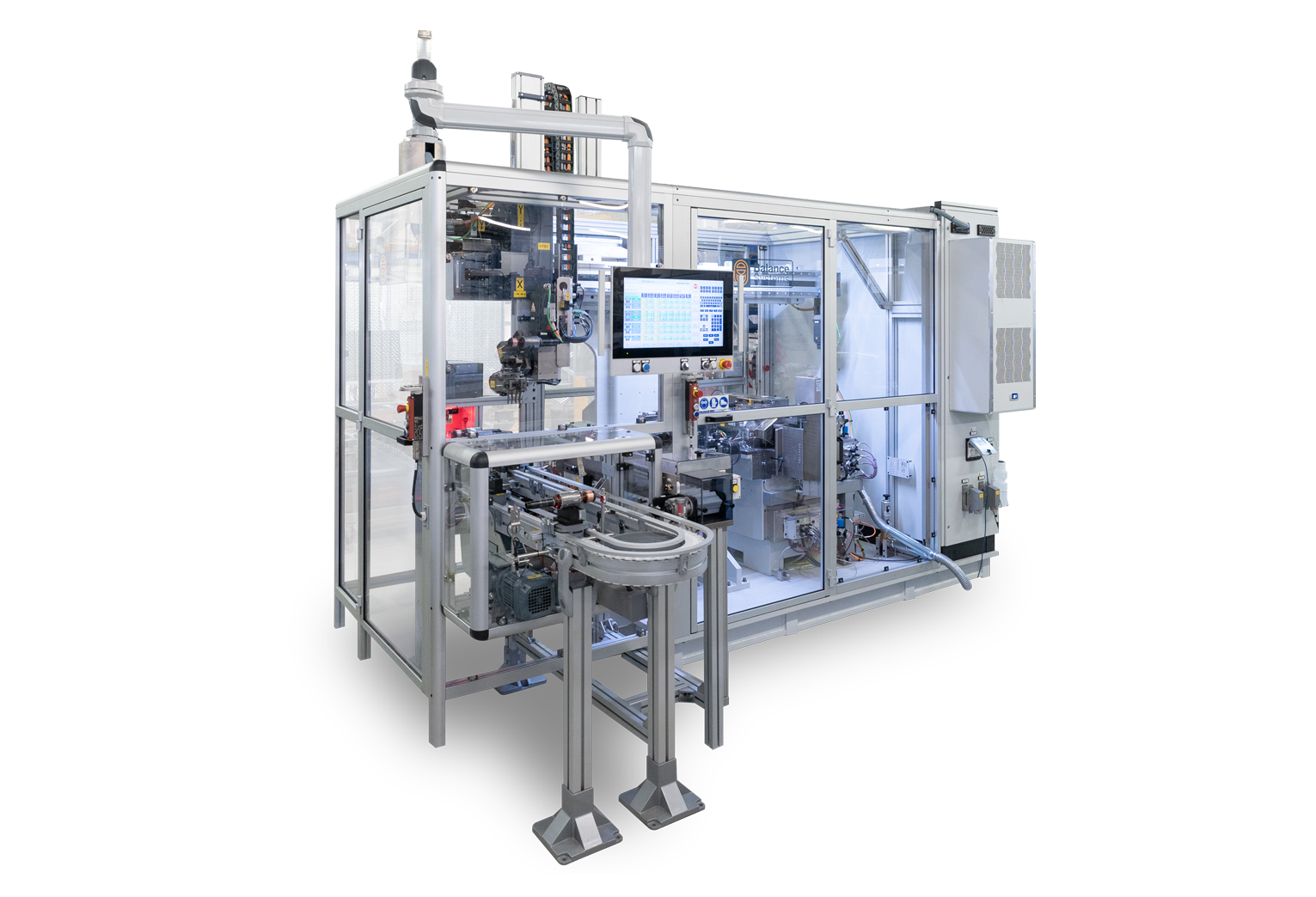

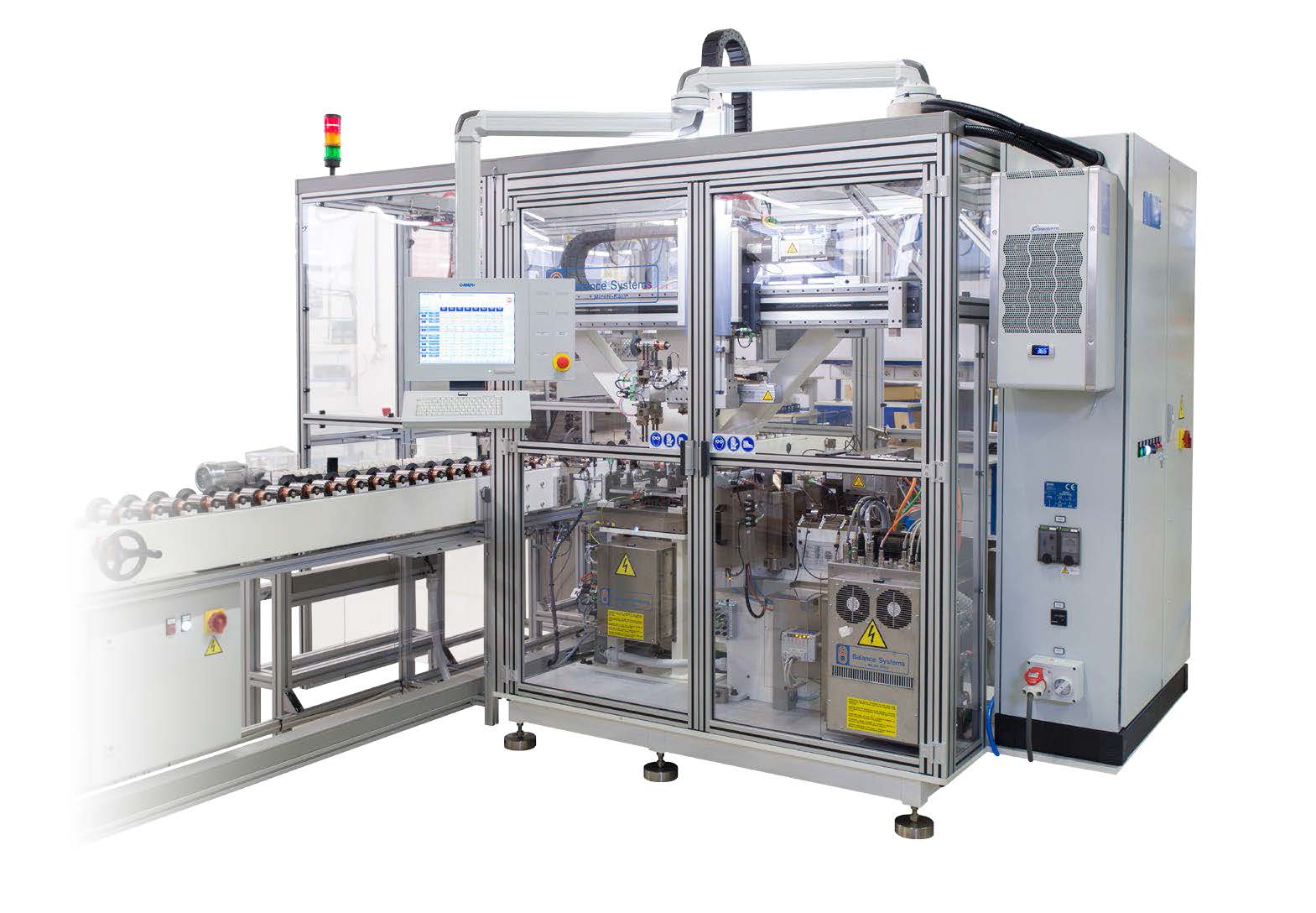

Automatic balancing machine

Features
  • Fully automatic dynamic balancing machine. Suitable for balancing all types of armatures.
  • The main applications are in the field of electrical motors for household appliances, electric tools and the automotive industry.
  • The machine can be delivered (upon request) with “ V “ or polar cutters.
  • Operator interface by industrial PC (Windows NT).
  • The main features of machine are its high level of flexibility and rapid changeover.
  • Modular constructive concept. Parts manipulation by pick and place with double gripper. Standard configuration with milling in lenght and depth. Full range of options to meet all the customer’s requirements.
Advantages

  • Automatic set-up
  • PC based operator interface
  • Easy and fast changeover
  • High level of reliability
  • Diagnostic and preventive maintenance program
  • User friendly
  • High level of repeatability and precision of the unbalance measuring
  • Easy to integrate in any type of production lines

Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for universal washing machine motors, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Balancing machines, Fuel pump armatures, Home appliances, HVAC armatures, Industrial electric motors, Power Tools, Power tools armatures, Starter motors armatures

Product Description

Technical data
Max armatures weight: 3 kg (6,61 lb)
Armatures diameter: 10-80 mm (0,39 – 3,15 in)
Stack lamination height: 10-100 mm (0,39 – 3,94 in)
Cycle time: 14.5 s
Controlled by: Industrial PC
Measuring accuracy: 0.1 gmm/kg max (0,04 oz.in/lb)
Power supply: 380-480 V three-phase 50/60 Hz
Balancing methods: Polar or vectorial milling in length and depth
Machine dimensions (LxWxH): 1400 x 3500 x 2000 mm (55,12 x 137,80 x 78,74 in)



Options
Reject conveyor
Industrial vacuum system for milling
chips
SPS/SW
Printer
Teleservice
Device for balancing skewed slots armatures (-16/+18)

Additional Information

Tipo di automazione

Automatic
