BMK8

BMK8

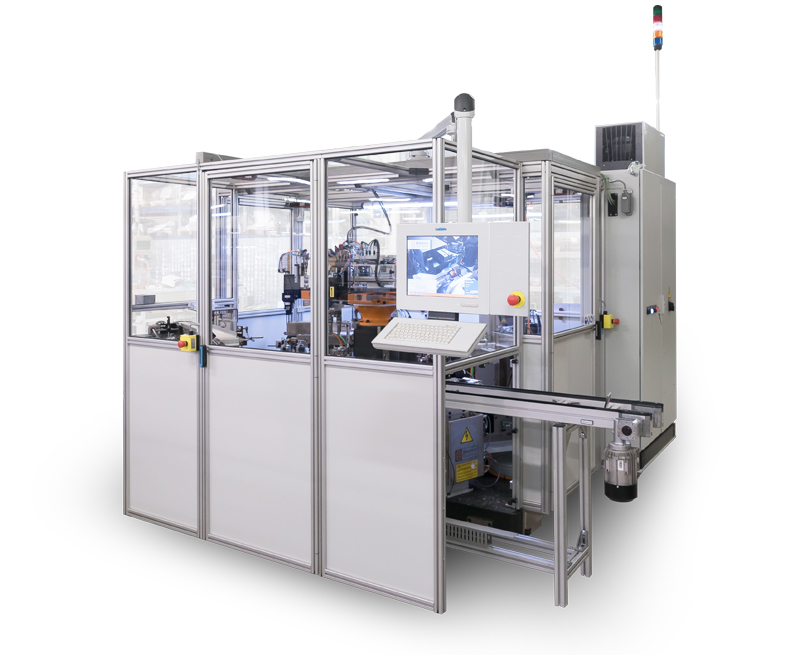

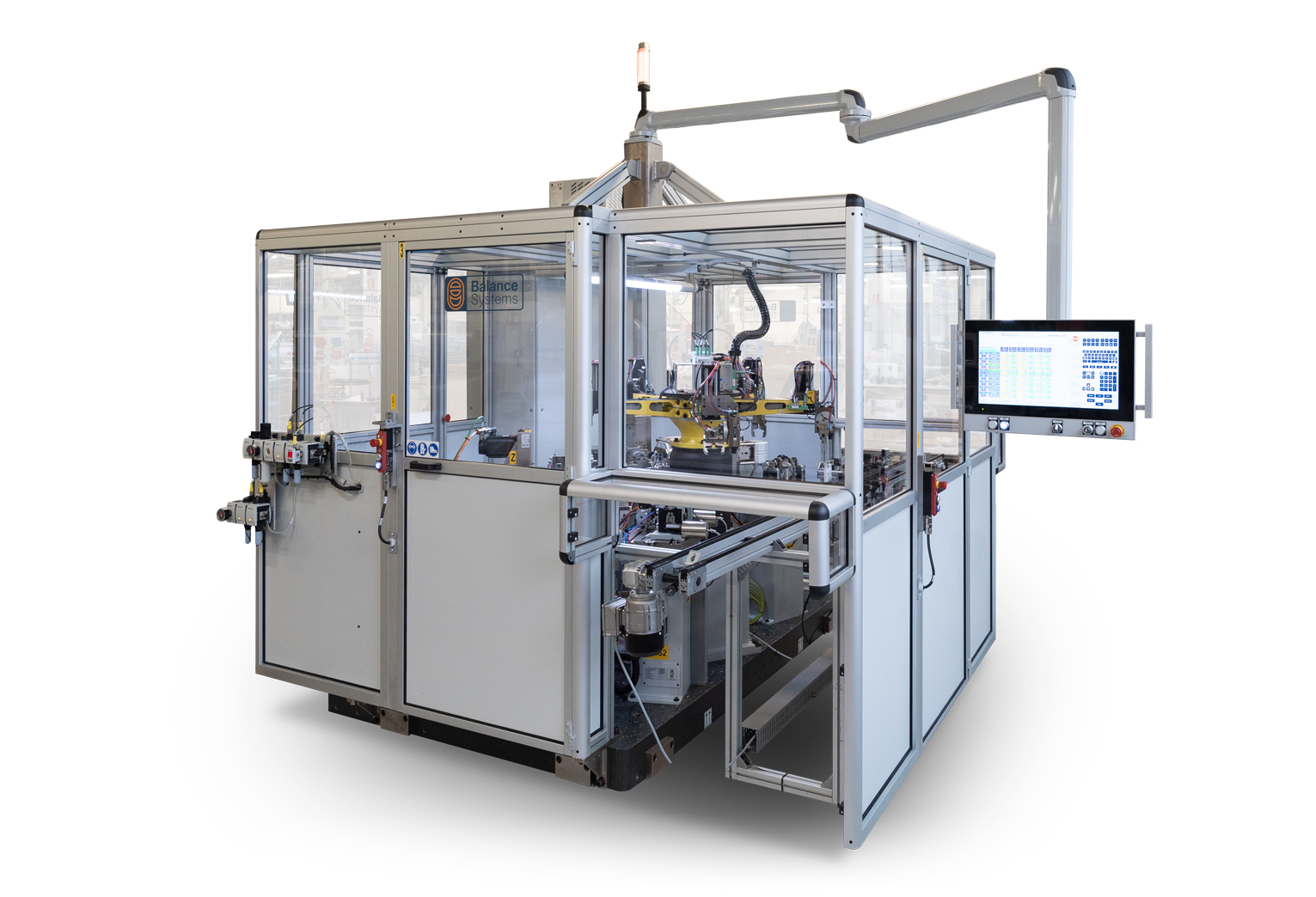

Automatic balancing machine

Features:
  • Fully automatic dynamic balancing machine for high volume production.

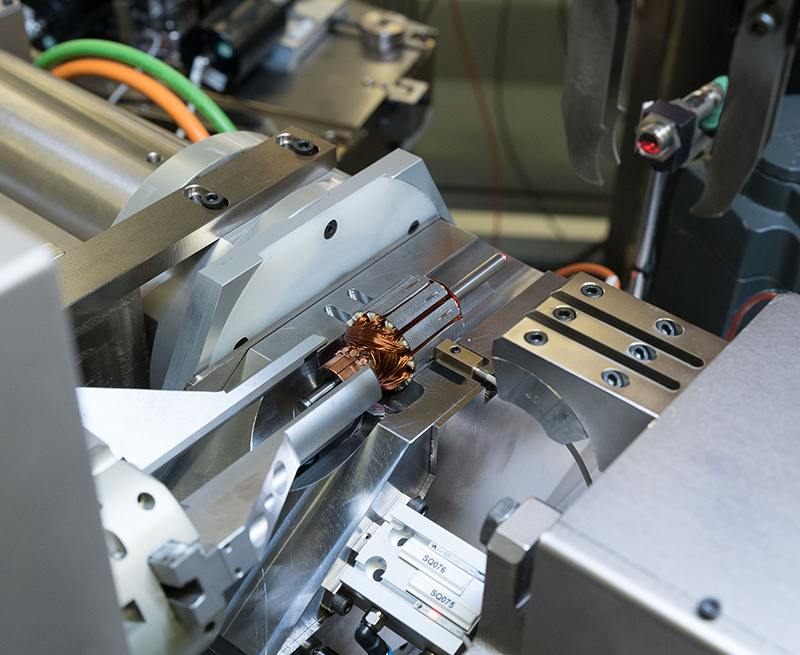

  • Suitable for balancing all armatures types.
  • The main applications are in the field of: electrical motors for household appliances, electronic tools and the automotive industry.
  • The machine can be delivered (upon request) with “V” or polar cutters.
  • Operator interface by industrial PC.
  • Modular constructive concept.

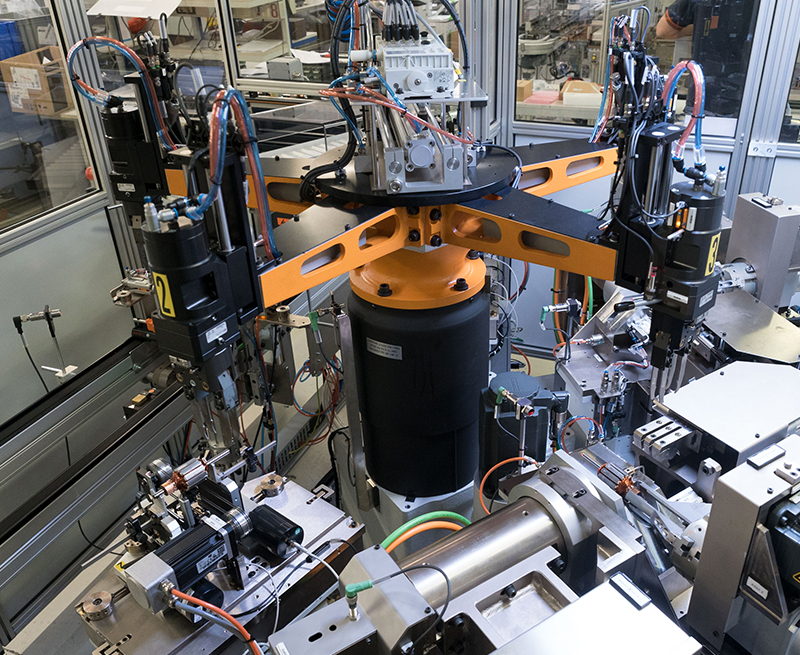

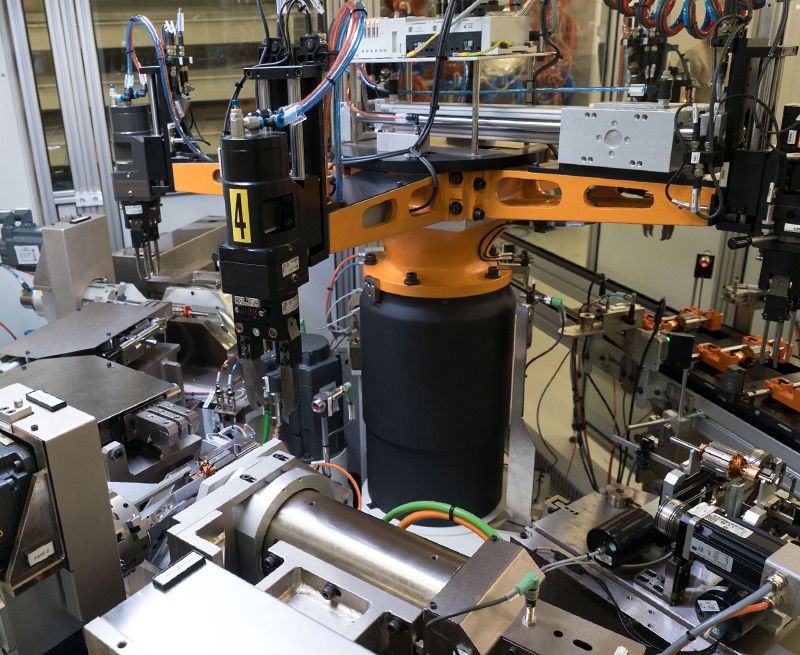

  • Parts manipulation by rotors cam index.
  • High level of flexibility and quick changeover.
  • Full range of options to meet all the customer’s requirements.

Advantages:

  • Short cycle time
  • High measuring precision
  • High balancing precision
  • Quick hangeover
  • User friendly
  • Quick return on investment

Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for universal washing machine motors, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Balancing machines, Fuel pump armatures, Home appliances, HVAC armatures, Power Tools, Power tools armatures, Starter motors armatures

Product Description

Technical data
Max armatures weight: 3 kg (6,61 lb)
Armatures diameter: 15 – 80 mm (0,59 – 3,15 in)
Stack lamination height: 10-100 mm (0,39-3,94 in)
Cycle time (on two planes): 6 s
Cycle time (static): 6 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg max (0,04 oz.in/lb)
Balancing methods: Polar or vectorial milling in length and depth
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 3000 x 2800 x 2400 mm (118,11 x 110,24 x 94,49 in)



Options
Reject conveyor
Industrial Vacuum cleaner for removing milling chips
SPC/SW and printer
Teleservice
Device to balance skewed slots armatures (-16°/+16°)
Device for quick changeover

Additional Information

Tipo di automazione

Automatic
