BTK1-2S

BTK1-2S

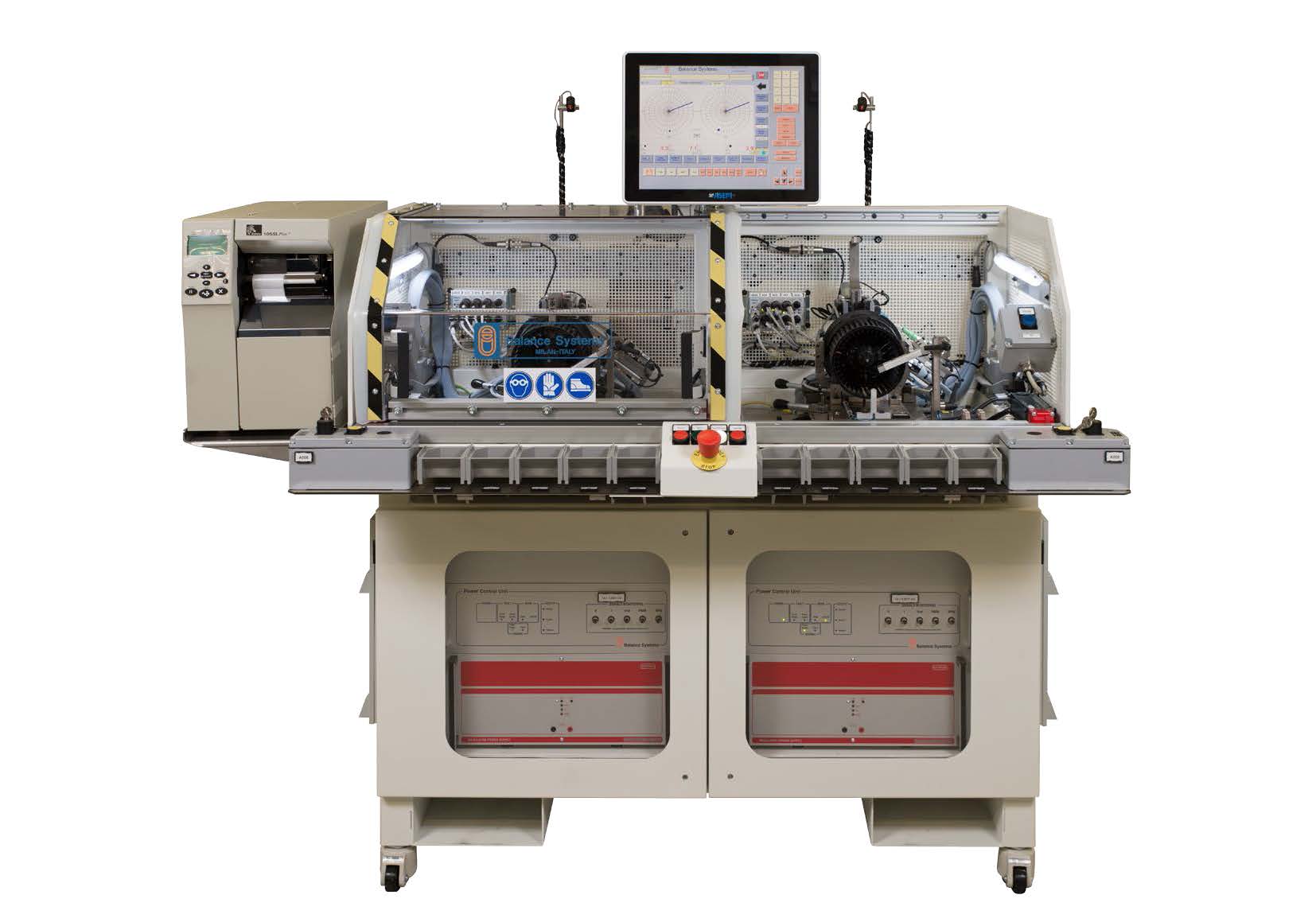

Balancing machine for motor and fan assemblies

Features
  • Dynamic balancing machine with one or two work stations.
  • For all types of assembled motors with fans.
  • Suitable for balancing and functional testing motors with fan for air conditioning and internal ventilators in the automotive field.
  • As an option it is possible to carry out the electric test of the motor.
  • The entire balancing and testing cycle is menu driven for easy operation.
  • The basic machine is able to balance only fans with DC motor without electronics control on board, however it is predisposed to accept all the necessary devices to balance fans with electronic control unit.
Advantages

  • Compact machine
  • User friendly program
  • Very easy to use
  • High level of repeatability
  • High balancing precision
  • No skilled operator needed

Automotive Components, Balancing machines, Blowers with brushless motors, Building Technology, HVAC blowers, Tangential blowers

Product Description

Technical data
Workable parts weight: 3 kg (6,61 lb)
Max fan diameter: 200 mm (7,87 in)
Measure rpm: Programmable
Time: 10 s (Accelerator unbalance measures, deceleration and fan breaking)
Machine dimensions (LxWxH): 1400 x 1300 x 1750 mm (55,12 x 51,18 x 68,90 in)
Machine weight: 600 kg (1322,77 lb)
Power supply: 220 V single-phase 50/60 Hz, 2 kW
Air supply: 6 bar
Controlled by: Industrial PC



Options
SPC Software
Printer
Electric Test
Teleservice
Label Printer
Barcode & data matrix management

Additional Information

Tipo di automazione

Manual
