BTK2-2S

BTK2-2S

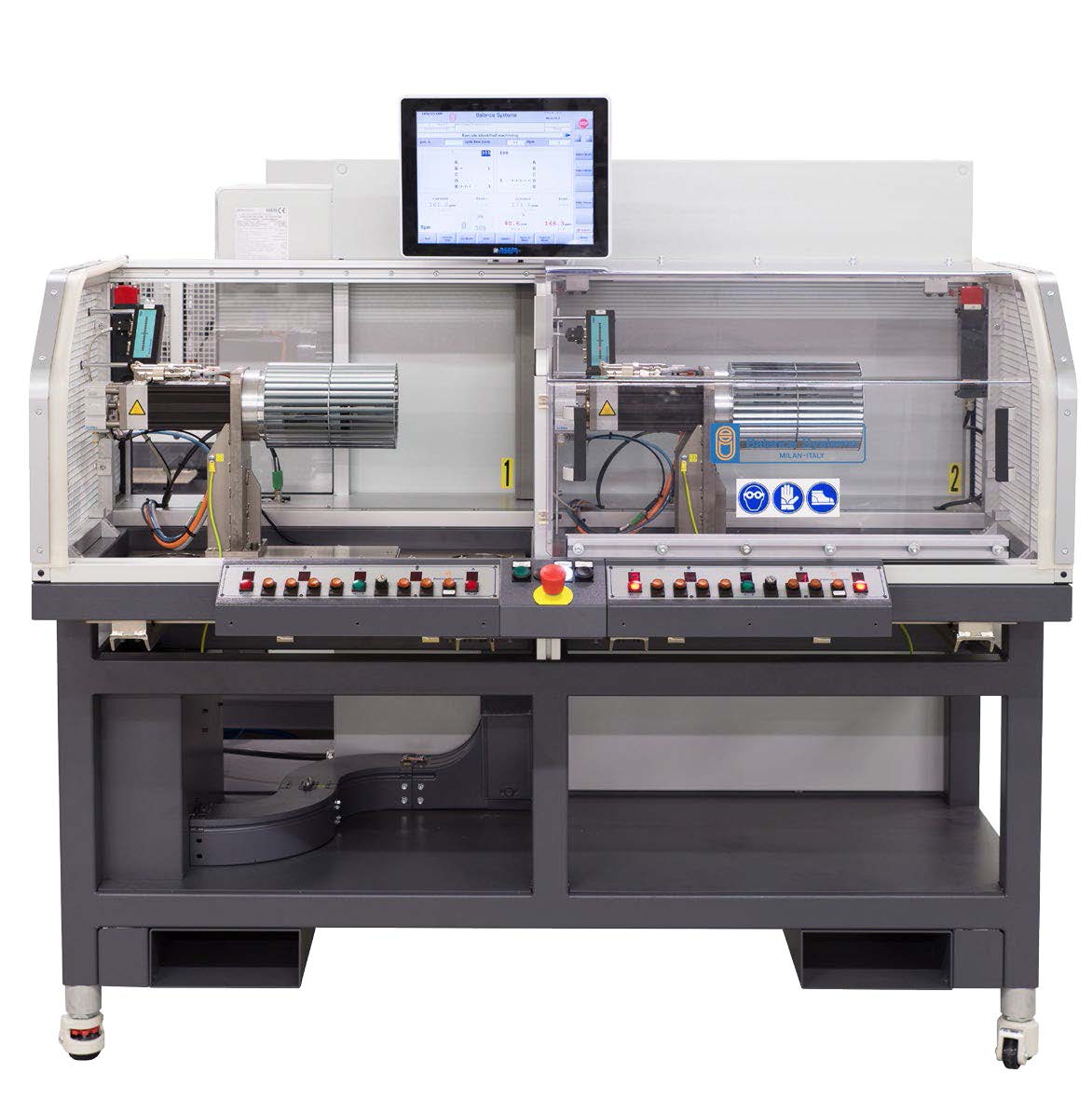

Manual balancing machine

Features:
  • Manual balancing machine with double station, able to perform both the balancing and the dimensional control (optional) of fans for engine radiator cooling, car inside ventilation or industrial ventilation. It allows the measuring and the correction of the unbalance on one plane (static), or on two planes (dynamic). It also provides precise indications to the operator, for the addition of correction weights.
  • The correction of the unbalance is carried out manually by adding clips on fan blades.
  • Operator interface by industrial PC.
  • High level of flexibility and quick changeover.

Advantages:

  • High level of flexibility
  • High measuring precision
  • High balancing precision
  • Quick changeover
  • User friendly

Automotive Components, Axial fans, Balancing machines, Blowers for radiators cooling, Blowers for radiators cooling with shroud, Building Technology, Fans for radiators cooling, HVAC fans, Tangential fans

Product Description

Technical data
Max parts weigh: 4 Kg (8,82 lb)
Max fan diameter: 400 mm (15,75 in)
Max fan length: 300 mm (11,81 in)
Measuring time: (excluded loading
and unloading time by the operator)
10 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg max (0,04 oz.in/lb)
Machine power supply: 380V – 480V tre-fasi 50/60Hz
Machine dimensions (LxWxH): 1650 x 1350 x 1700 mm (64,96 x 53,15 x 66,93 in)



Options
SPC software
Printer
Teleservice
Device for run out measurement
(eccentricity and orthogonality)

Additional Information

Tipo di automazione

Manual
