BTSK5

  • BTSK5 Balancing Machines

BTSK5

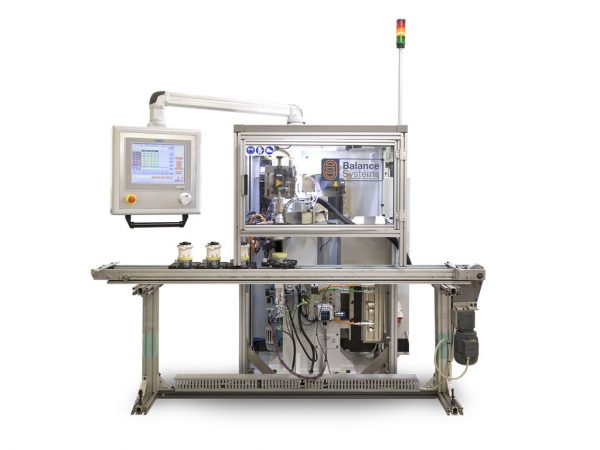

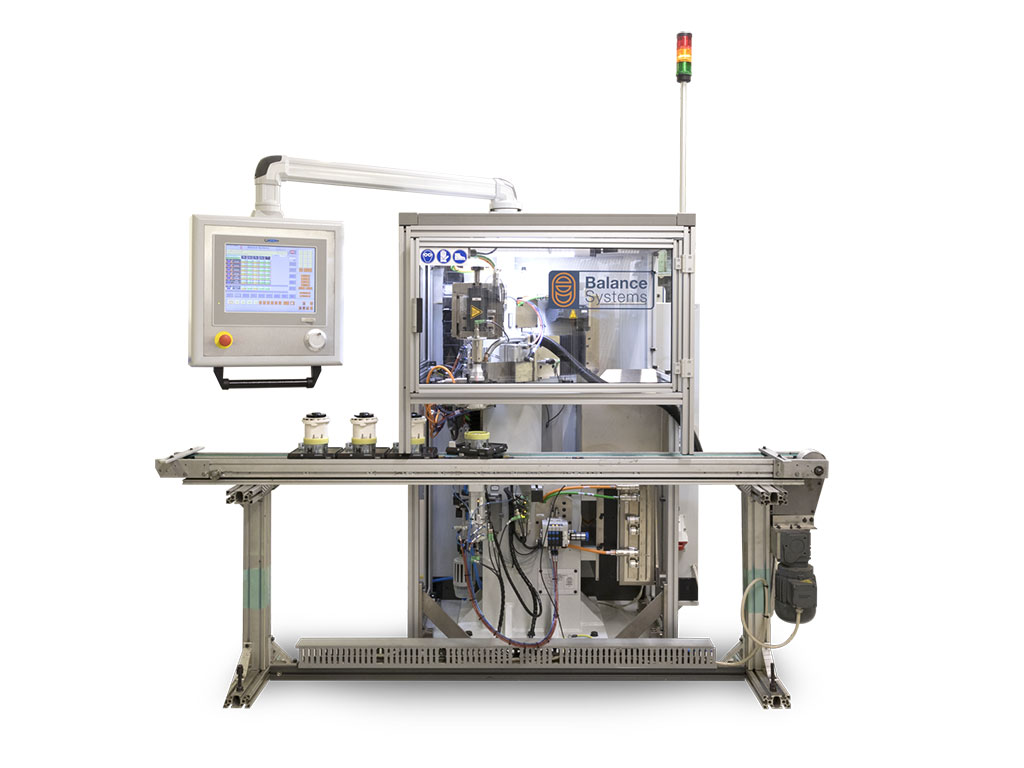

Automatic balancing machine

Features:
  • Automatic balancing machine for assembled vacuum cleaner motors.

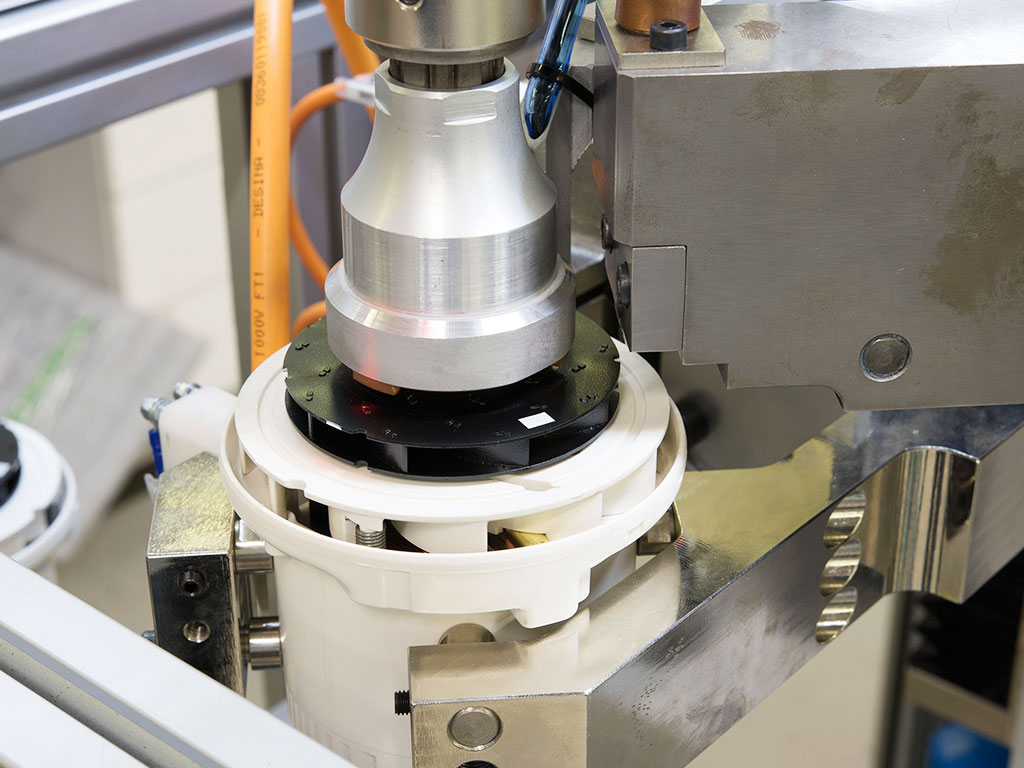

  • The machine comes with: unbalance measuring unit, impeller angular positioning and unbalance compensation unit by punching of the impeller.

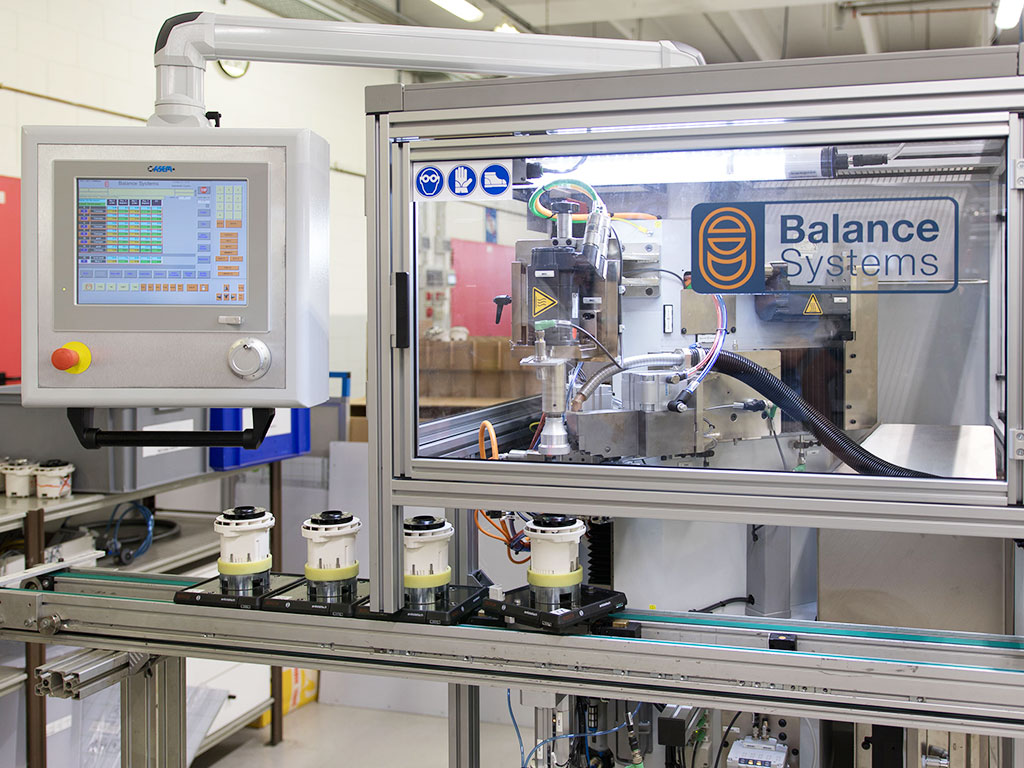

  • The assembled vacuum cleaner motor is picked up directly from the loading transport system, that is usually supplied by the customer, and it is a pallet line. Machine easy to install and to use.
  • The machine can be tooled up for a wide range of assembled vacuum cleaners motors.

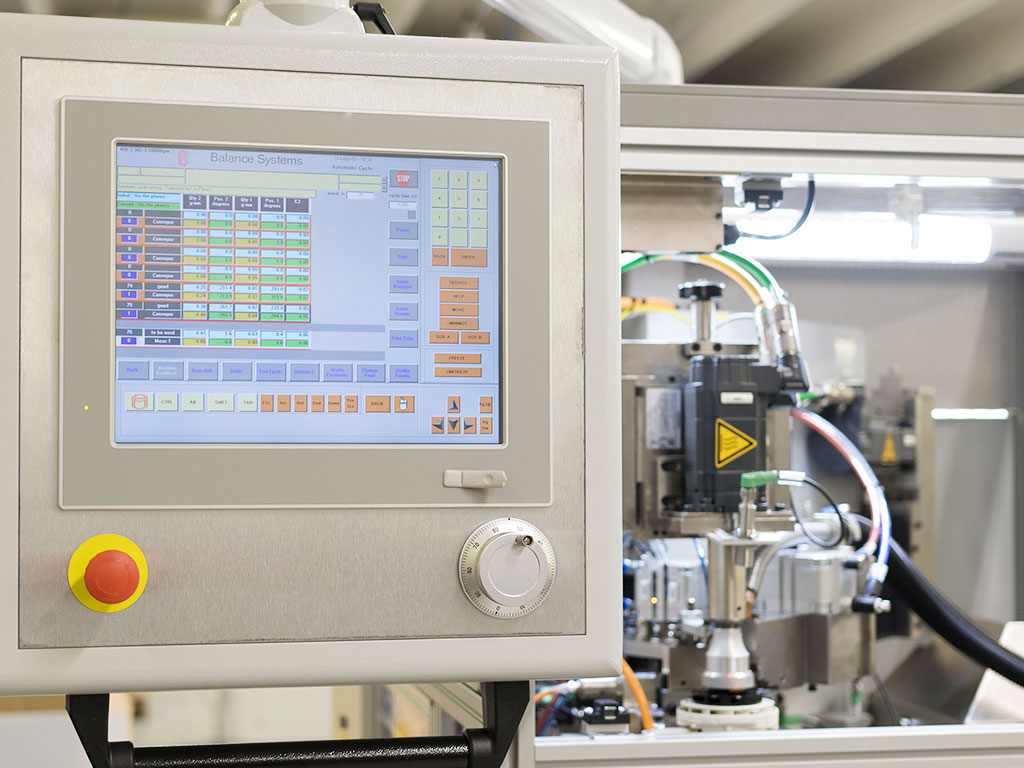

  • Machine controlled by a PC.
Advantages:

  • Compact dimension
  • High measuring precision
  • High balancing precision
  • Users friendly
  • Fast change over

Assembled motors for vacuum cleaners, Balancing machines, Home appliances

Product Description

Technical data
Max parts weight: 4 kg (8,82 lb)
Minimum impeller diameter: 60 mm (2,36 in)
Maximum impeller diameter: 140 mm (5,51 in)
Cycle time: 17 s
Controlled by: Industrial PC
Measuring precision: 1 mg (2,2046e-6 lb)
Balancing methods: Punching
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 1200 x 1375 x 2000 mm (47,24 x 54,13 x 78,74 in)
Machine weight: 1000 kg (2204,62 lb)
Options
Industrial vacuum systems to remove the punching chips
SPC Software
Printer
TeleService

Additional Information

Tipo di automazione

Automatic
