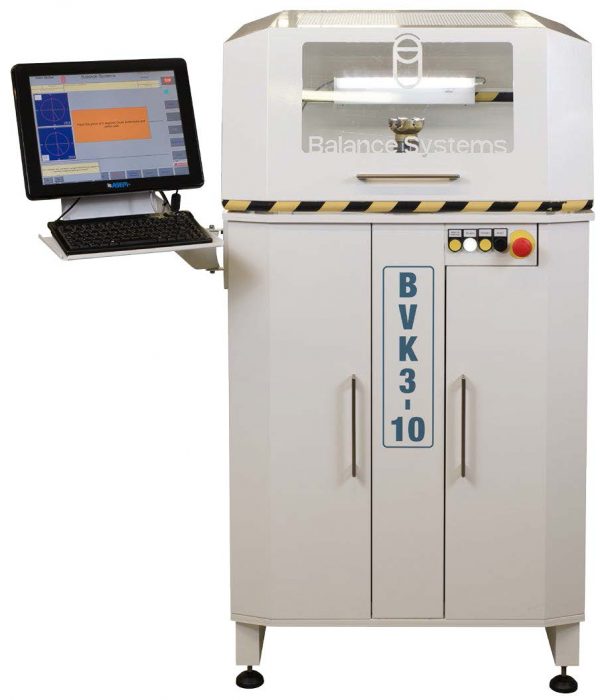

BVK3-10

BVK3-10

Manual vertical axis balancing machine

Features
  • General purpose vertical balancing machine for disc shaped parts, the machine can be easily tooled for all disc shaped parts as: brake discs,drums, fans, pulleys, flywheels, tools, etc.
  • Unbalance measurement on 1 or 2 planes, parts clamping by manual device, as an option it is possible to clamp the parts with a pneumatic device.
  • The assembled vacuum cleaner motor is picked up directly from the loading transport system, that is usually supplied by the customer, and it is a pallet line. Machine easy to install and to use.
  • Operator interface by industrial PC.
  • High level of flexibility and quick changeover.
  • Full range of options to meet all the customer’s requirements.
Advantages

  • Compact machine
  • High level of flexibility
  • High measuring repeatability
  • High balancing precision
  • Quick changeover
  • User friendly

Accessories for power tools, Automotive Components, Axial fans, Balancing machines, Brake discs, Building Technology, Drums, Fans for radiators cooling, Flywheels / Pulleys, Home appliances, HVAC fans, Impellers for vacuum cleaner motors, Power Tools, Tangential fans

Product Description

Technical data
Part mass 10 kg max (22,05 lb)
Part diameter 50-500 mm (1,97-19,69 in)
Measure rpm: Programmable
Unbalance measuring time: 10 s (depending on part intertia)
Controlled by: Industrial PC
Manual part clamping
Power supply: 110-220 V single-phase 50/60 Hz, 1 kW
Machine dimensions (LxWxH):: 850 x 650 x 1500 mm (33,66 x 25,59 x 59,06 in)
Weight: 500 kg (1102,31 lb)



Options
Preventive maintenance and diagnostic software
Teleservice
SPC Software and printer
Part clamping with pneumatic device

Additional Information

Tipo di automazione

Manual
