BVK3-40-DU

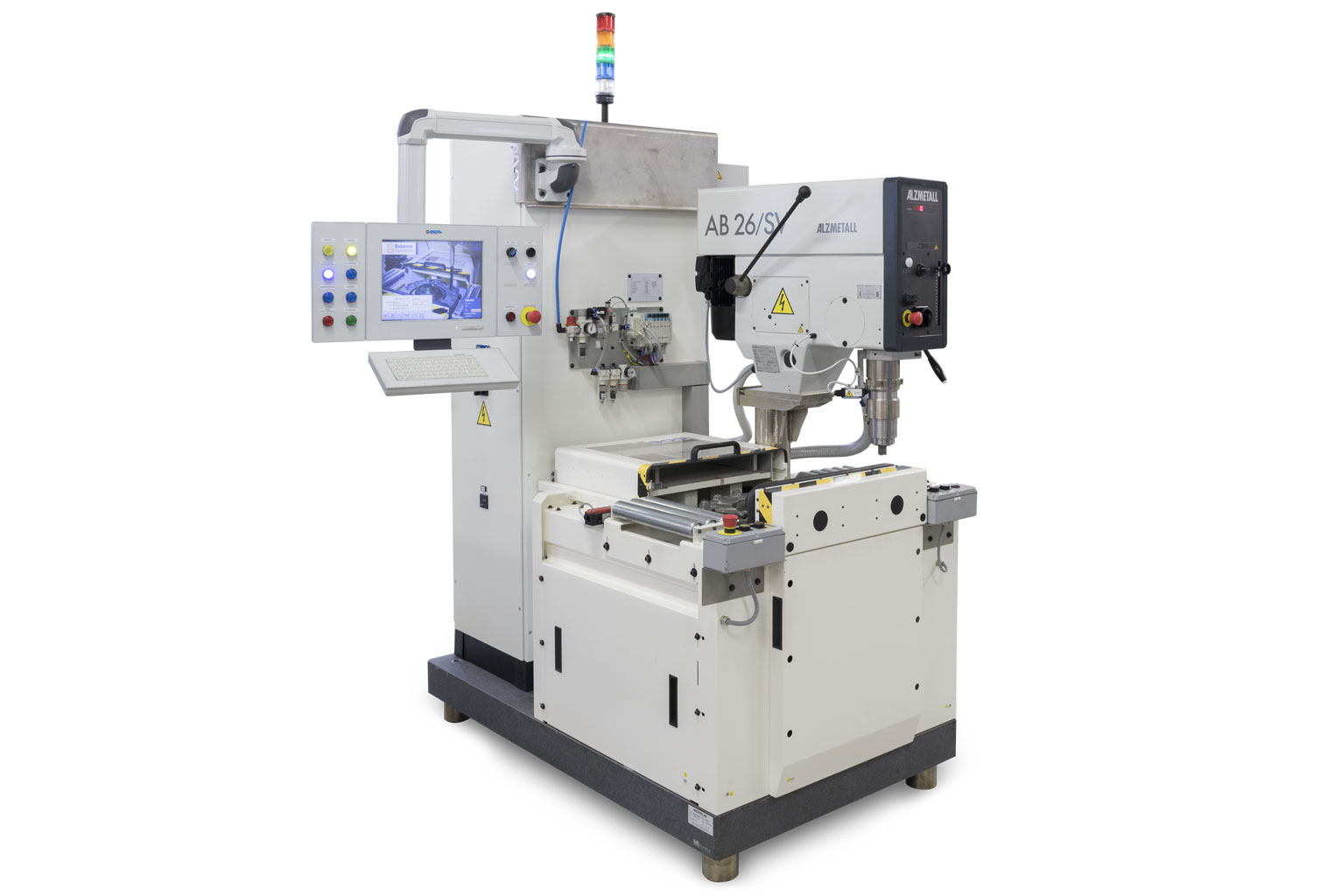

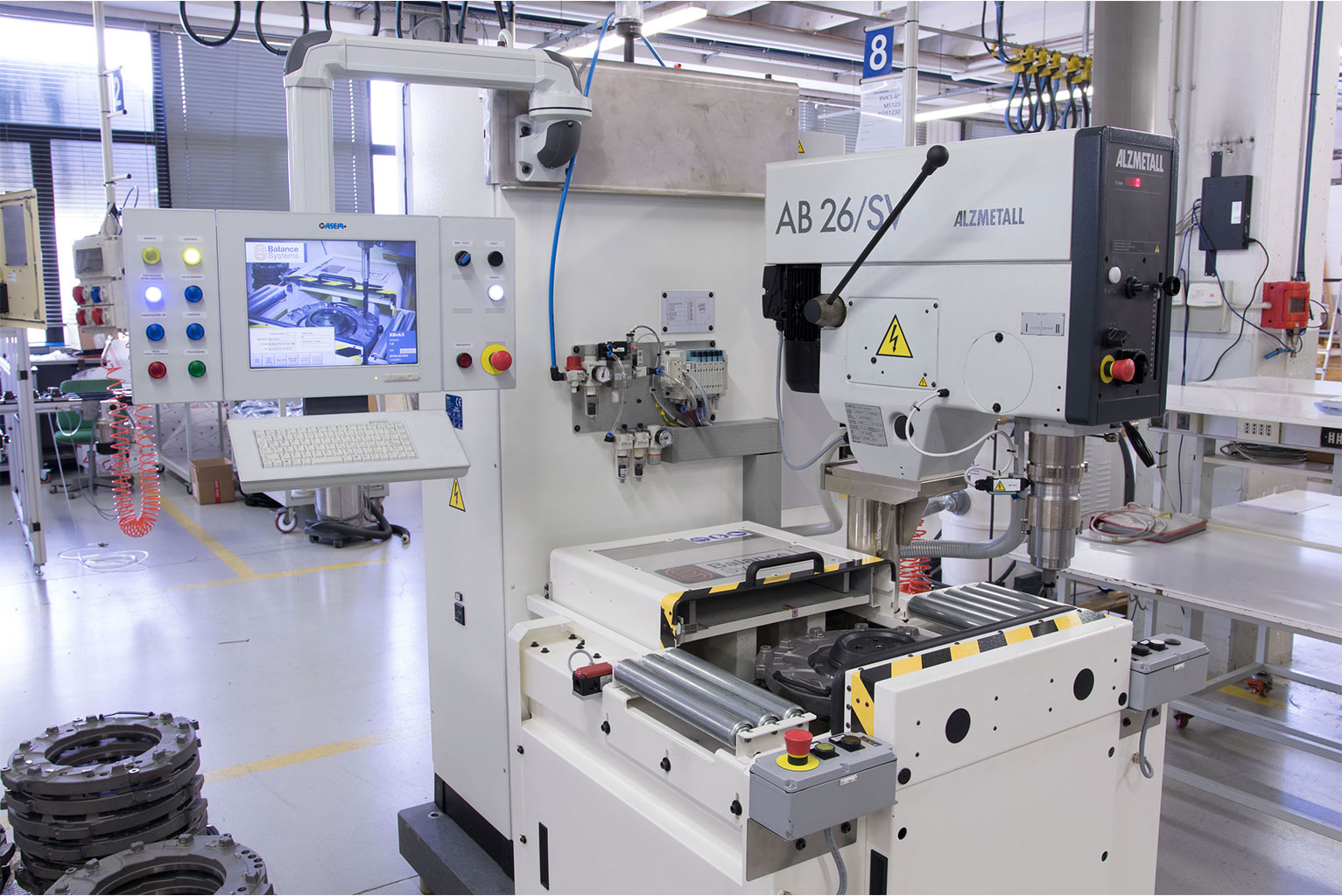

Semi-automatic and manual balancing machine

Features

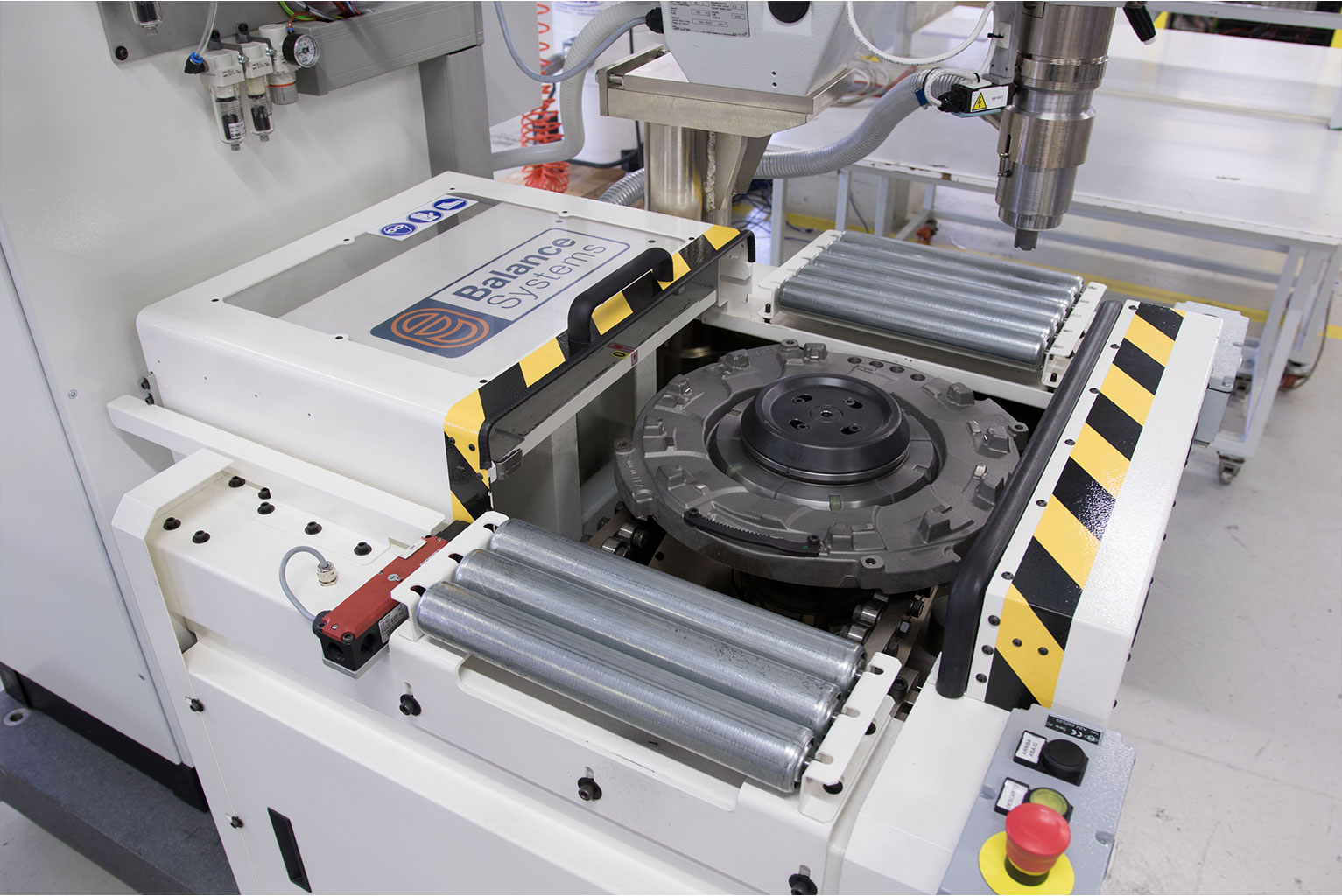

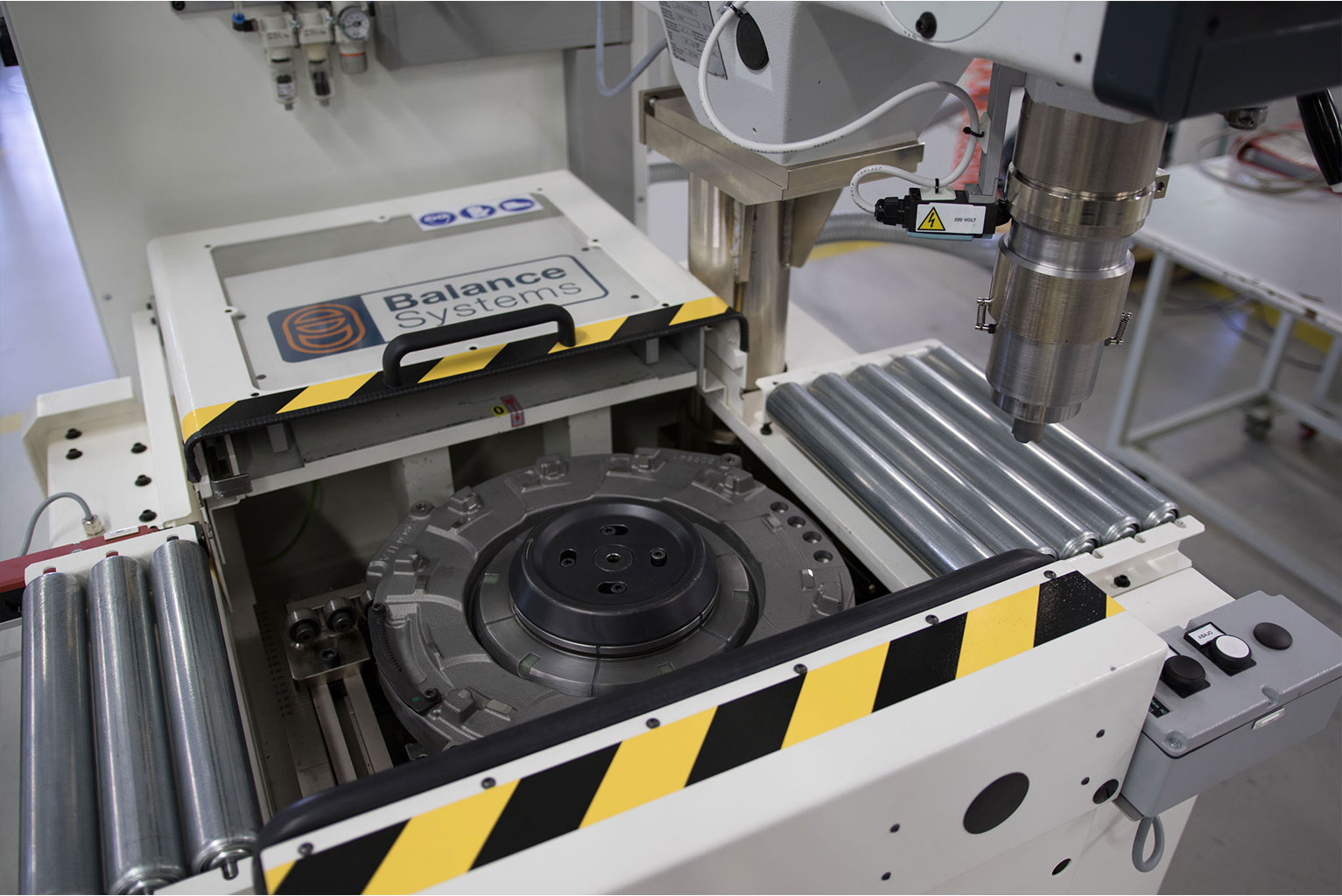

  • Vertical manual balancing machine capable of balancing on one plane (static), all the disc shape parts.
  • It is composed of; a measuring unit, a vertical drilling.
  • Parts manipulation performed by the operator.

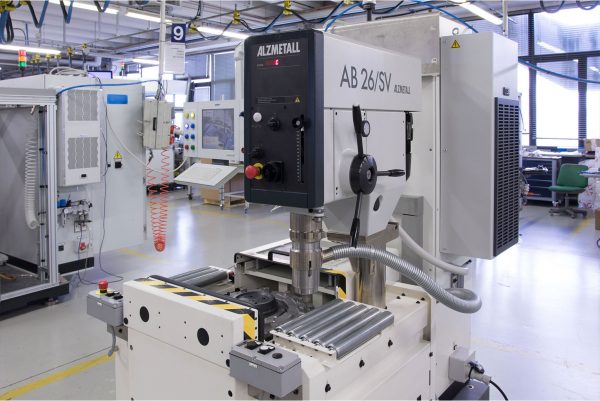

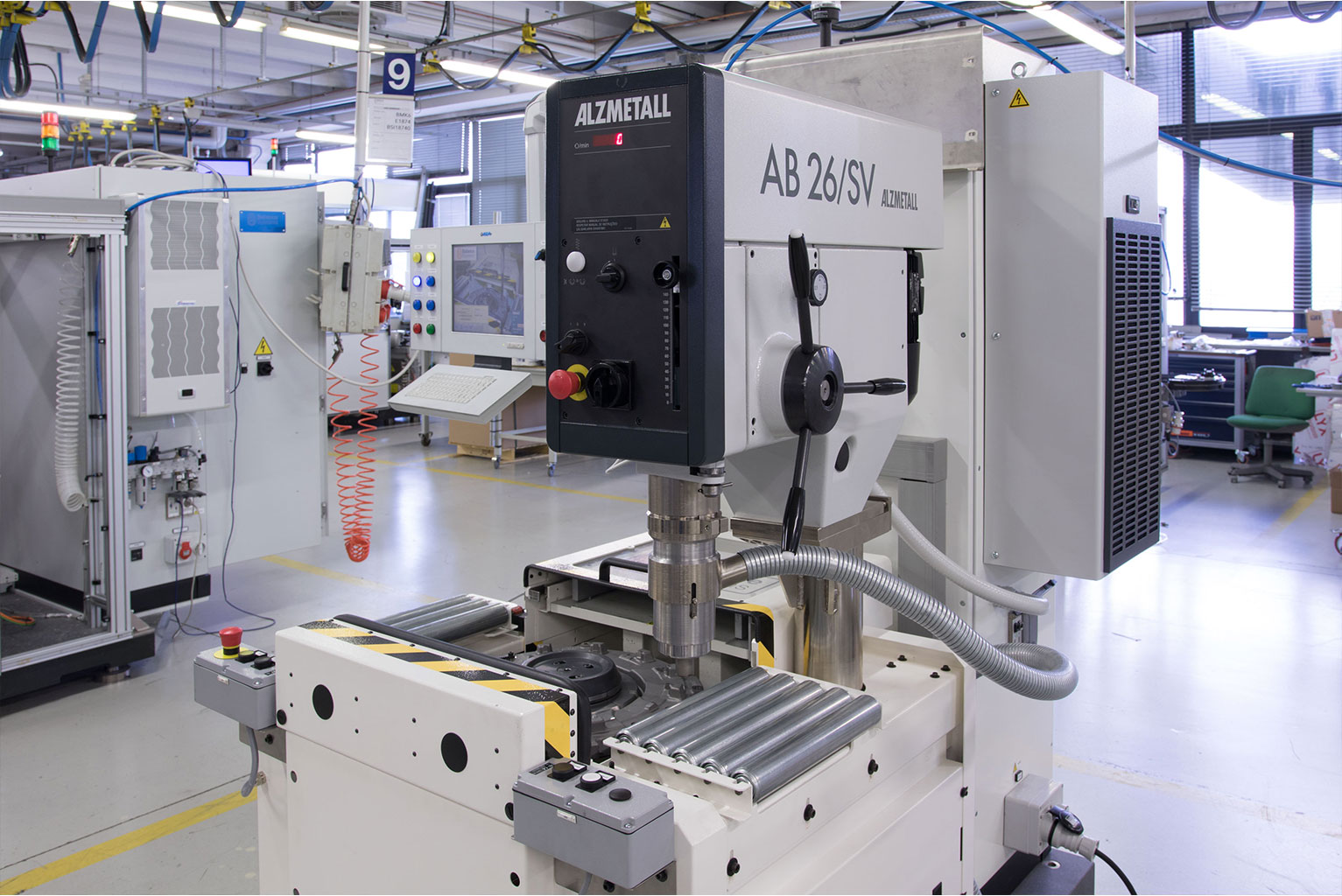

  • The unbalance is manually corrected by embedded axial drilling unit (maximum drill bit diameter 20mm).
Advantages

  • Compact machine
  • High level of flexibility
  • High measuring repeatability
  • High balancing precision
  • Quick changeover
  • User friendly

Automotive Components, Balancing machines, Clutches, Drums, Flywheels / Pulleys

Product Description



Technical data
Max rotor external diameter: 430 mm (16.93 in)
Max rotor internal diameter: 260 mm (10.24 in)
Max rotor height: 40 mm (1.57 in)
Max rotor weight: 50 kg (110.23 lb)
Cycle time: < 60 s
Balancing method: Axial drilling
Balancing speed: 500-700 rpm

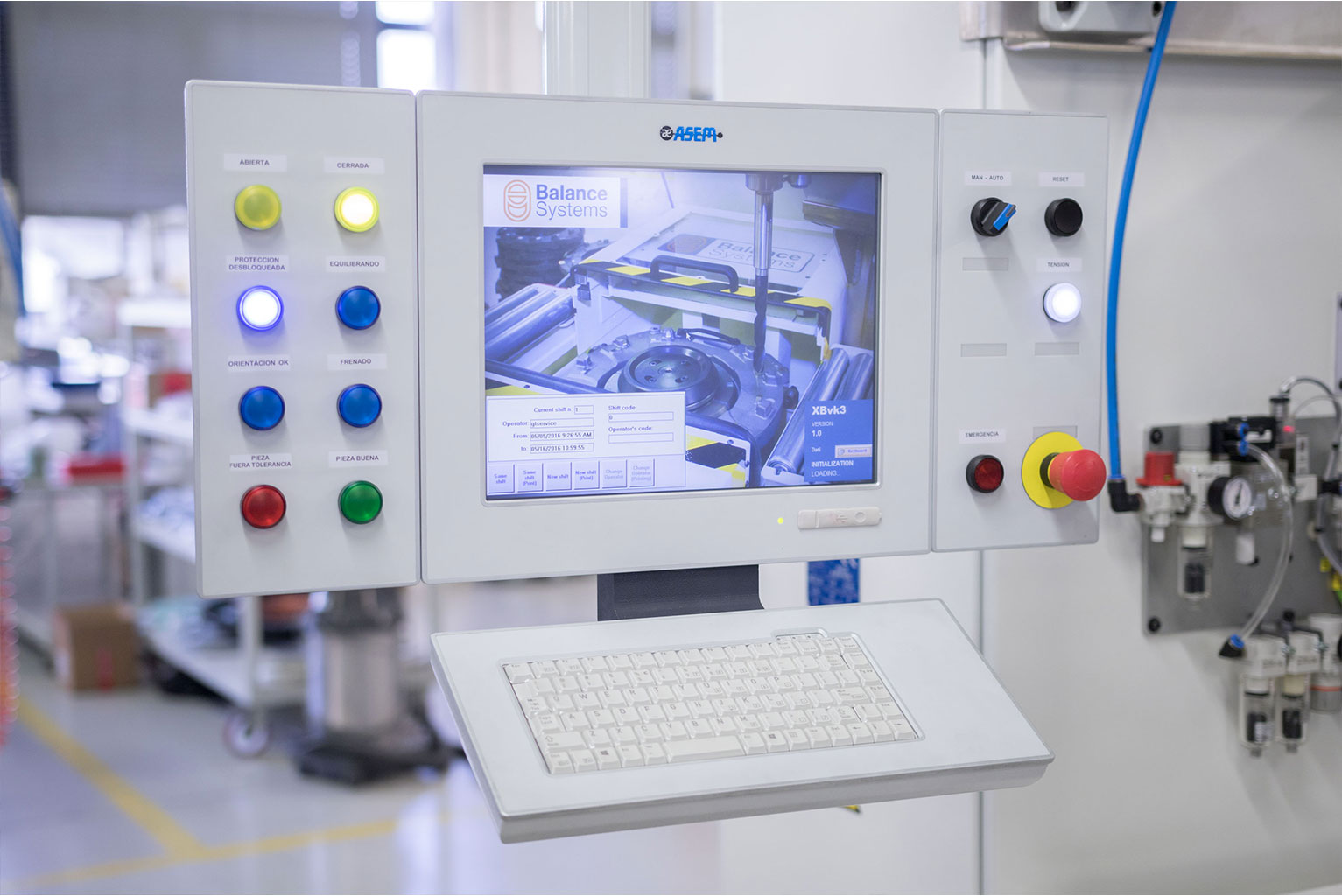

Controlled by: Industrial PC
Power: 6 kVA
Power supply: 400-480V+PE three-phase 50/60 Hz
Machine weight: 2000 kg (4409.24 lb)
Machine dimensions (LxWxH): 1150 x 1700 x 2120 mm (45.28 x 66.93 x 83.46 in)



Options
Operating unit (drilling)
Tele-service
Industrial vacuum cleaner
SPC / SW
Master rotor

Additional Information

Tipo di automazione

Semi-automatic
