DMK4-2A-A

DMK4-2A-A

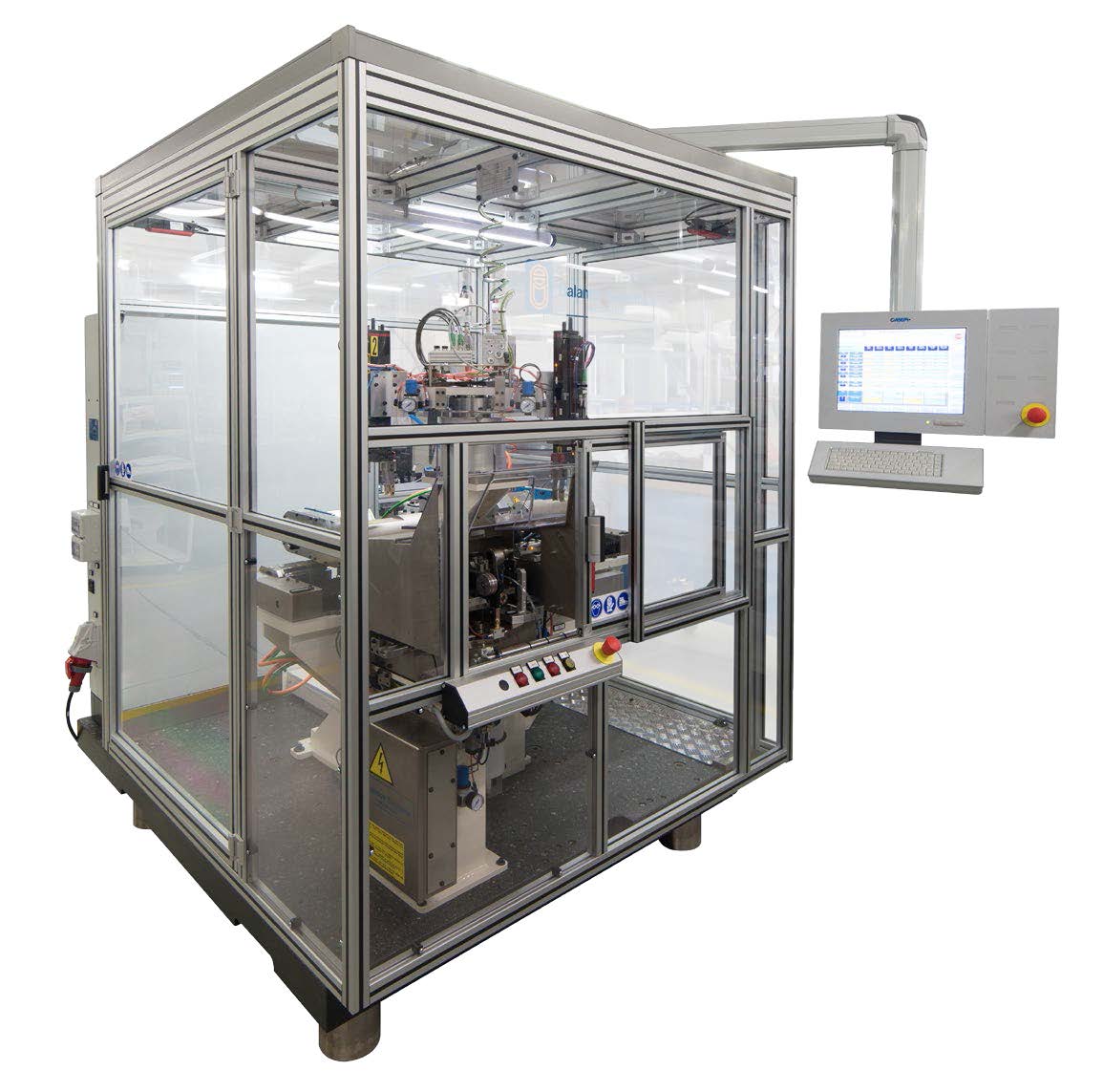

Semi-automatic balancing machine

Features
  • Semi-automatic balancing machine, specifically developed for balancing rotors for asynchronous motors and for brushless motors and similar rotating parts, in a completely automatic way on two planes (dynamic). The unbalance is corrected by removing material as an outcome of axial drilling.
  • It is composed of: one measuring unit, two drilling units (one for each balancing plane) and a rotary table with pneumatic pliers for parts manipulation (from measuring unit to drilling units and vice versa).
  • Operator interface by industrial PC.
  • High level of flexibility and quick changeover.
Advantages

  • Automatic set-up
  • High level of flexibility
  • High level of repeatability and precision of the unbalance measuring
  • Diagnostic and preventive maintenance program
  • Quick changeover
  • High level of reliability
  • User friendly

Automotive Components, Balancing machines, Brushless rotors, Industrial electric motors, Rotors for asynchronous motors

Product Description

Technical data
Max rotor weight 3 kg (6,61 lb)
Rotor diameter: 30-70 mm (1,18-2,76 in)
Stack lamination height: 20-80 mm  (0,79-3,15 in)
Cycle time: < 20 s (plus operator’s handling time)
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg (0,04 oz.in/lb)
Balancing method: Axial drilling
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 1700 x 1800 x 2300 mm (66,93 x 70,87 x 90,55 in)



Options
Device for balancing rotors with ball bearings
Industrial Vacuum cleaner for drilling chips
SPC/SW
Printer
Teleservice

Additional Information

Tipo di automazione

Semi-automatic
