DMK4-A-I

DMK4-A-I

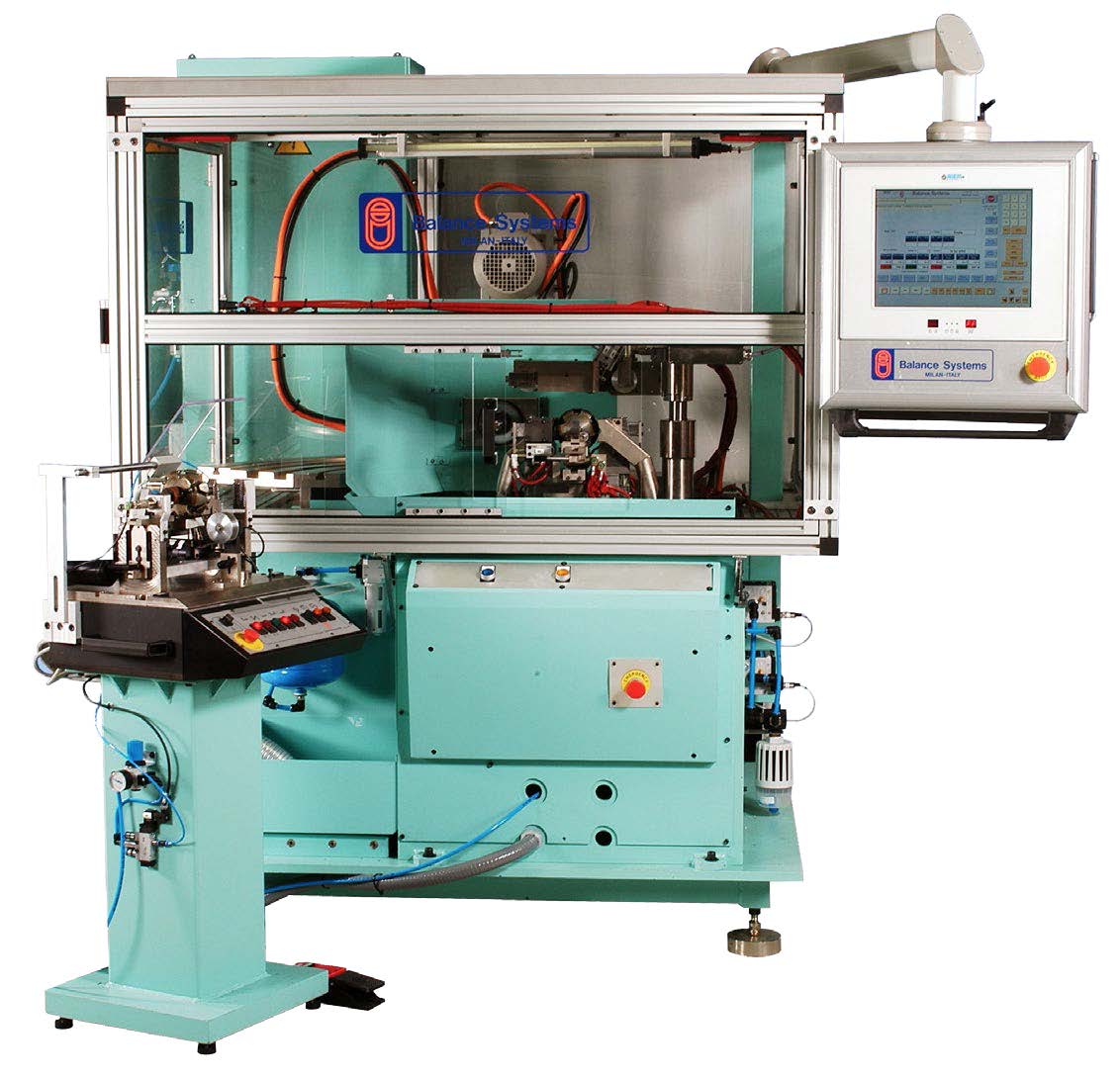

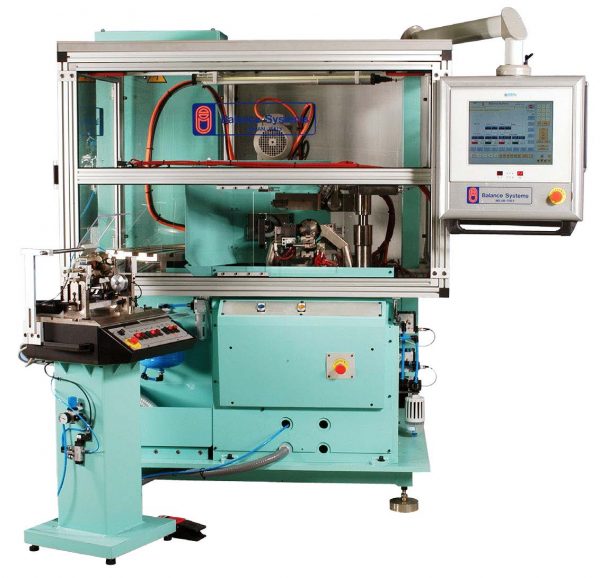

Semi-automatic balancing machine

Features
  • Dynamic semi-automatic balancing machine.
  • Suitable for balancing automotive alternators rotors, brushless motors and similar rotating bodies on two planes (dynamic).
  • Unbalance correction by two axial or inclined drilling.
  • High level of flexibility and quick changeover.
  • All the work phases are automatic. Pieces loading and unloading are both manual.
Advantages

  • Automatic set-up
  • Highly skilled operator not required
  • Very easy to use
  • PC based operator interface
  • Easy and fast changeover
  • Diagnostic and preventive maintenance programs
  • High level of repeatability and precision of the unbalance measuring

Alternators rotors, Automotive Components, Balancing machines, Brushless rotors

Product Description

Technical data
Max rotor weight 4 kg (8,82 lb) (can be increased by special tooling)
Measuring and positioning time: 8-10 s (depending on rotor weight)
Max sensitivity: 0.1 gmm/kg (0,04 oz.in/lb)
Max production rate: 140-180 pcs./hour (depending on initial unbalance and operator skills)
Balancing methods (drilling) Axial, Angle
Measuring precision: 0.1 gmm/kg max
Balancing method: Axial drilling
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 1800 x 1700 x 2000 mm (70,87 x 66, 93 x 78,74 in)



Options
Teleservice
SPC Software
Printer
Audit unit
Marking device
Industrial vacuum cleaner for removing drilling chips

Additional Information

Tipo di automazione

Semi-automatic
