DMK4-AE

DMK4-AE

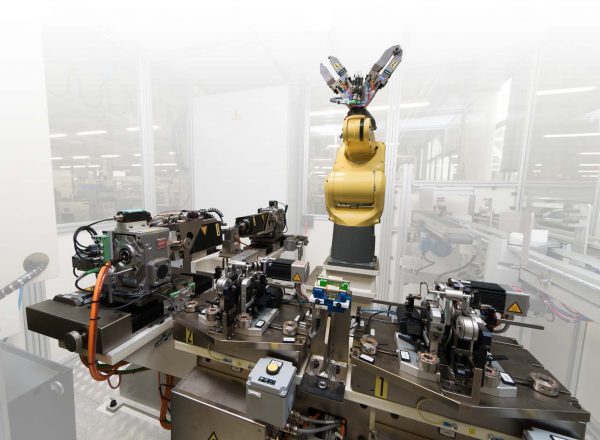

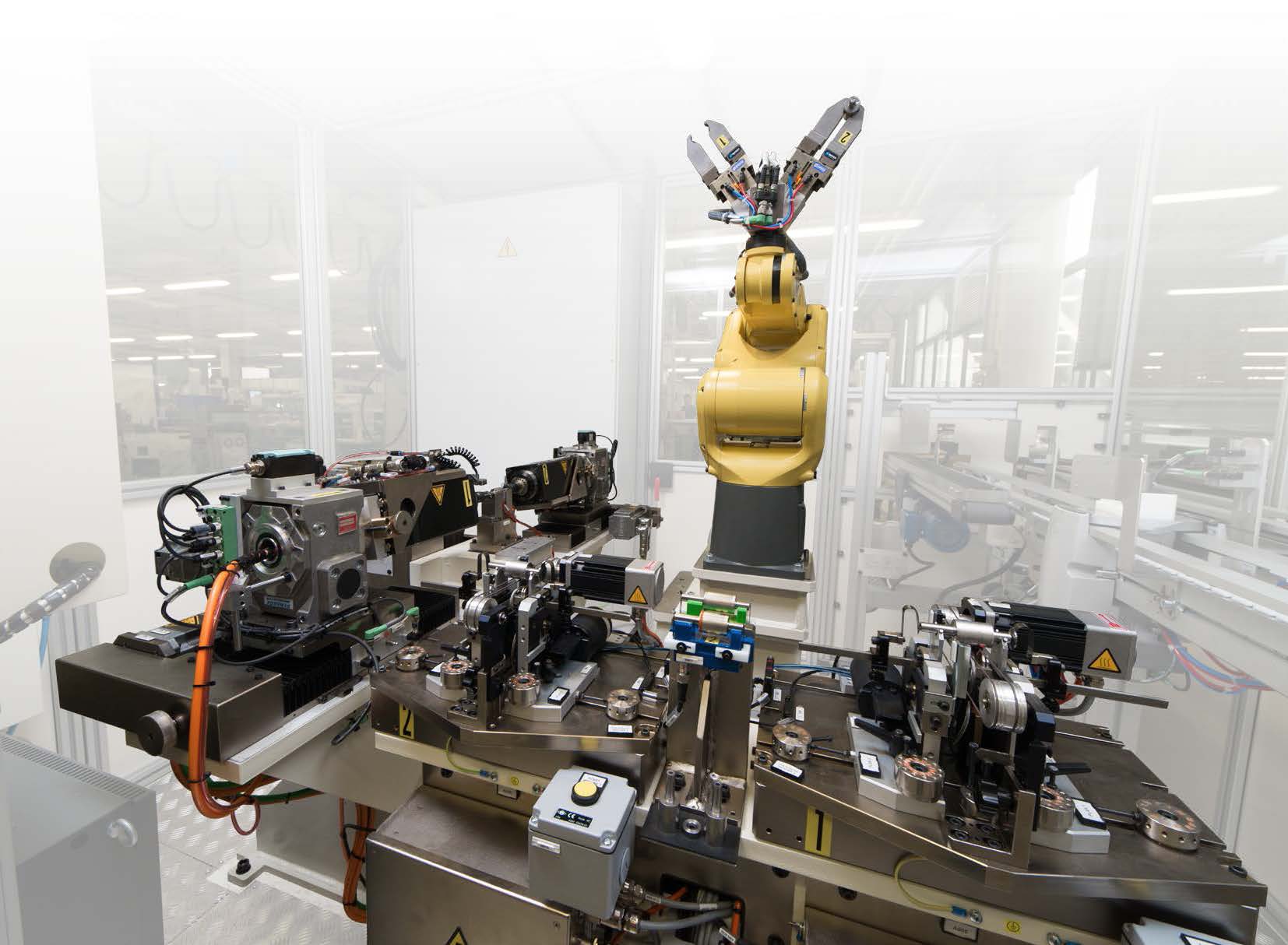

Automatic balancing machine

Features
    • Fully automatic balancing machine, specifically developed for balancing small rotors, in a completely automatic way on two planes (dynamic). The unbalance is corrected by removing material as an outcome of axial drilling.
    • It can be inserted in any type of lines (pallet, step, by loop, etc.).
    • Operator interface by industrial PC.
    • Modular constructive concept.

Parts manipulation by anthropomorphic robot.

  • High level of flexibility and quick changeover.
  • Full range of options to meet all the customer’s requirements.



Advantages

  • High level of flexibility
  • High measuring precision
  • High balancing precision
  • Diagnostic and preventive maintenance program
  • Quick changeover
  • User friendly

Balancing machines, Industrial electric motors, Rotors for water pumps for civil applications

Product Description

Technical data
Max rotor weight 2 kg (4,41 lb)
Rotor diameter: 15-70 mm (0,59-2,76 in)
Stack lamination height: 10-80 mm (0,39-3,15 in)
Cycle time: 14 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg max (0,04 oz.in/lb)
Balancing method: Axial drilling
Power supply: 380-480 V three-phase
Machine dimensions (LxWxH): 2600 x 3000 x 2450 mm (102,36 x 118,11 x 96,46 in)



Options
Reject conveyor
Industrial Vacuum cleaner for drilling chips
SPC Software
Printer
Teleservice
Master management

Additional Information

Tipo di automazione

Automatic
