DMK6-I

DMK6-I

Automatic balancing machine

Features:
  • Fully automatic dynamic balancing machine for high volume production.
  • Suitable for balancing automotive alternator rotors and rotors for asynchronous electric motors.
  • Unbalance measuring and audit unit with servomotor; rotor is driven by tangential belt.

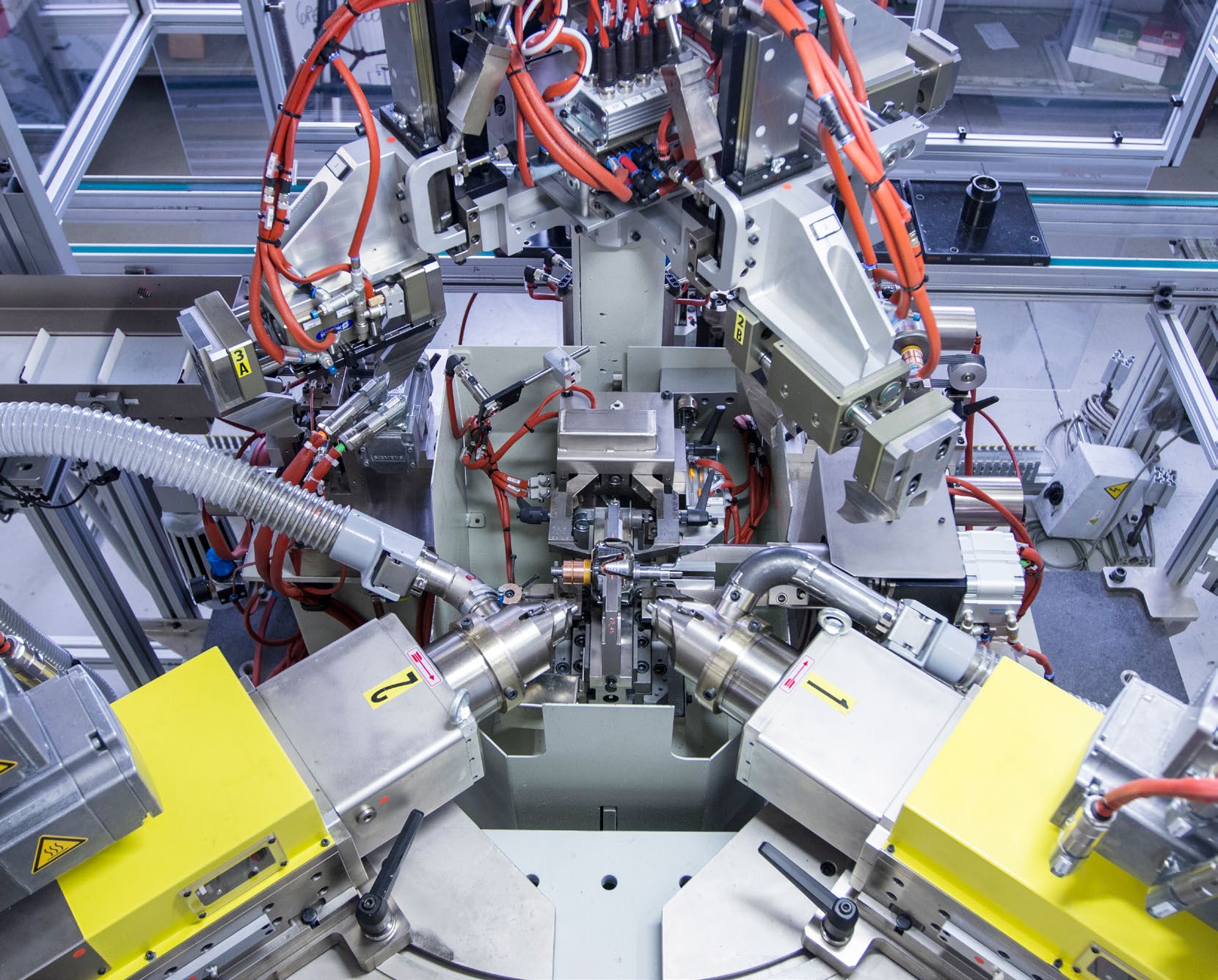

  • Unbalance correction by two drilling heads (one for each plane). Parts manipulation by rotary cam index with 4 arms.
  • Modular construction concept. High level of flexibility and quick changeover. Full range of options to meet all the customer’s requirements.
Advantages:

  • Automatic set- up
  • Highly skilled operator not required
  • Easy to use
  • Operator Interface by touch screen PC
  • User friendly
  • Fast changeover
  • High level of reliability
  • Diagnostic and preventive maintenance programs
  • High level of repeatability and precision of the unbalance measuring

Alternators rotors, Automotive Components, Balancing machines

Product Description

Technical data
Rotors diameter: 40-120 mm (1,57-4,72 in)
Max rotor weight: 3 kg (6,61 lb)
Stack lamination height: 20-120 mm (0,79-4,72 in)
Max sensitivity: 0.1 gmm/Kg (0,04 oz.in/lb)
Cycle time: (with 2 drilling on each plane) 18 s
Controlled by: Industrial PC
Balancing methods: Axial drilling, angle drilling (30° to 60°)
Power supply: 380-480 V three-phase 50/50 Hz
Machine dimensions (LxWxH): 2500 x 2600 x 2200 mm (98,43 x 102,36 x 86,61 in)



Options
Reject conveyor
Industrial vacuum cleaner for removing drilling chips
Software SPC
Printer
Tele-service

Additional Information

Tipo di automazione

Automatic
