HSTB3

HSTB3

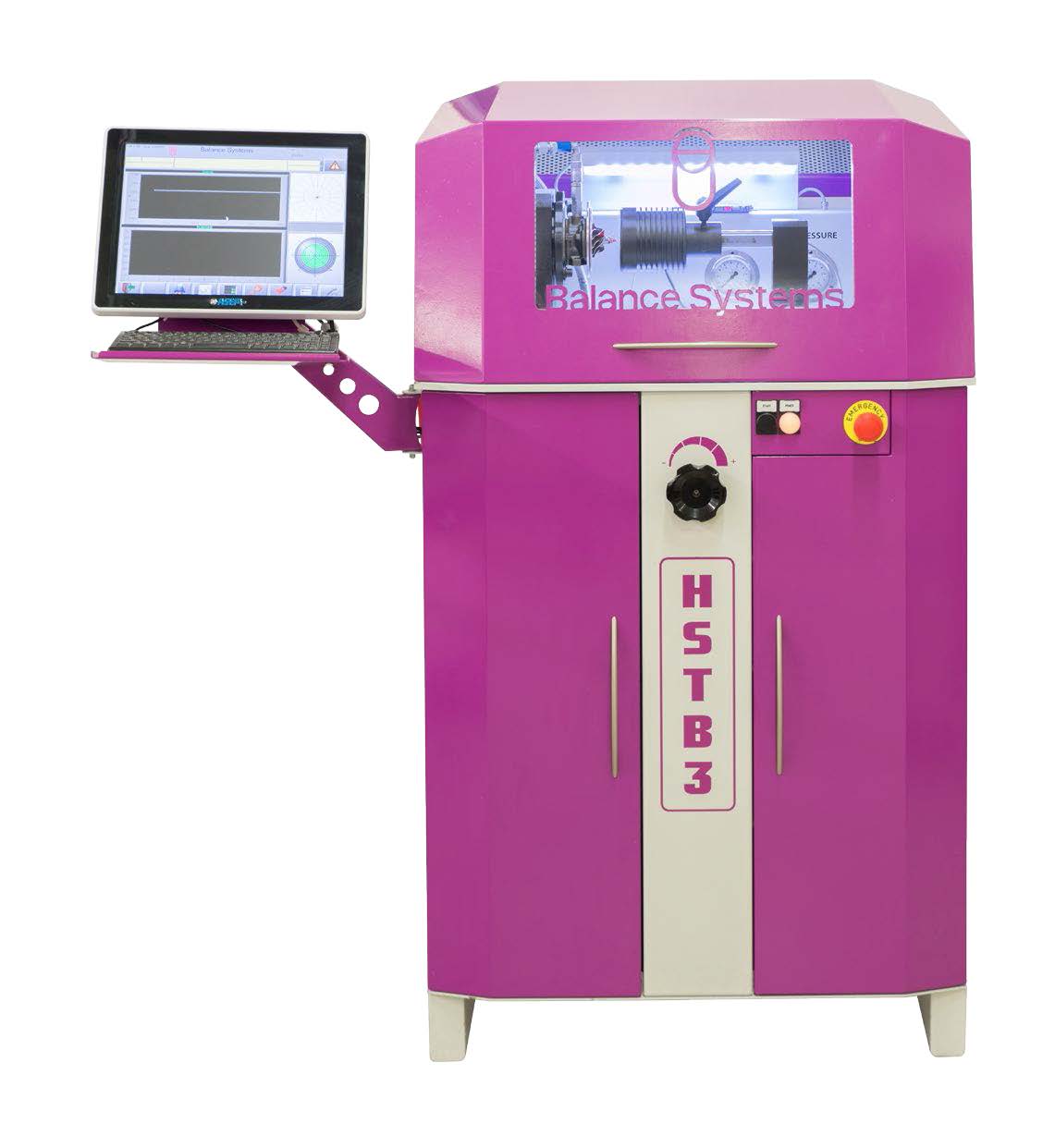

Turbocharger core assemblies balancing machine

Features
  • The HSTB3 balancing machine has been designed for balancing the complete turbocharger core assemblies.
  • The machine is extremely accurate, the unbalance measure and correction are made on the compressor side. With the adaptors (optional) the machine can balance a wide range of core assemblies for cars and trucks.
Advantages

  • Compact design
  • High measuring precision
  • User friendly
  • Oil heating systemam
  • Unbalance correction by removing material, directtly on the machine
  • Quick changeover

Automotive Components, Balancing machines, Turbochargers

Product Description

Technical data
Max core-assy weight: 5 kg (0,79 lb)
Max flange diameter: 150 mm (5,91 in)
High speed measuring: 250000 rpm (max approx)
Machine sensitivity:: 0.01 mm/s (0.00039 in/s)
Power supply voltage: 400 V 3Ph
Power requirement: 1.5 kW
Air supply: 6 bar
Machine dimensions (LxWxH): 800 x 700 x 1300 mm (31,50 x 27,56 x 51,18 in)



Additional Information

Tipo di automazione

Manual
