MK3-2S

MK3-2S

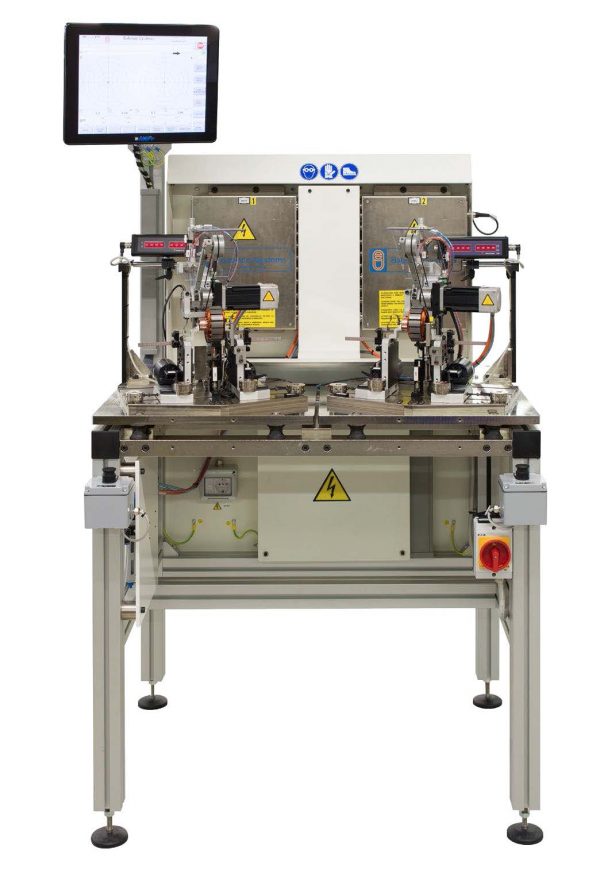

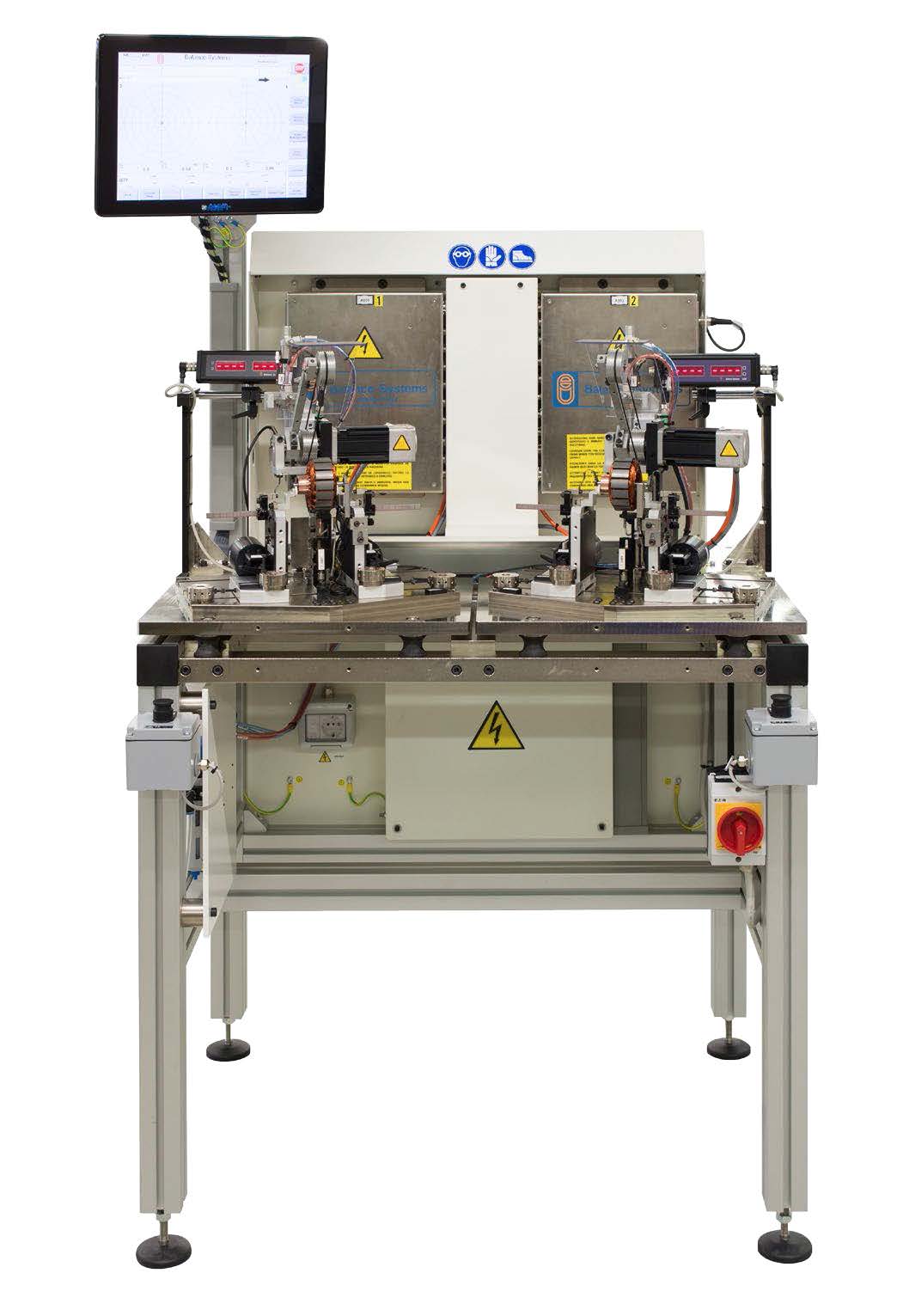

Manual balancing machine

Features
  • Double station manual balancing machine able to measure the unbalance of rotors on two planes (dynamic) or on one plane (static).
  • The correction of the unbalance is carried out manually by adding material (ea. Epoxy resin). The main application is in the automotive field.
  • Operator interface by industrial PC.
  • High level of flexibility and quick changeover.
Advantages

  • Compact machine
  • High level of flexibility
  • High measuring precision
  • High balancing precision
  • Quick changeover
  • User friendly

Aerospace, Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Balancing machines, Flywheels for gyroscopes, Fuel pump armatures, Home appliances, HVAC armatures, Industrial electric motors, Power Tools, Power tools armatures, Spindles for textile industry, Starter motors armatures, Textile machinery

Product Description

Technical data
Max part weight: 3 kg  (6,61 lb)
Part diameter: 15-90 mm (0,59-3,54 in)
Measuring time: 6 s
Controlled by: Industrial PC
Drive systems: Tangential or loop belt
Measuring accuracy: 0.1 gmm/kg max (0,04 oz.in/lb)
Power supply: 110-230 V 50/60 Hz
Machine dimensions (LxWxH): 960 x 860 x 1950 mm (37,80 x 33,86 x 76,77 inch)
Machine weight: 300 kg (661,39 lb)



Options
Printer
Teleservice
Digital display

Additional Information

Tipo di automazione

Manual
