MK3-A

MK3-A

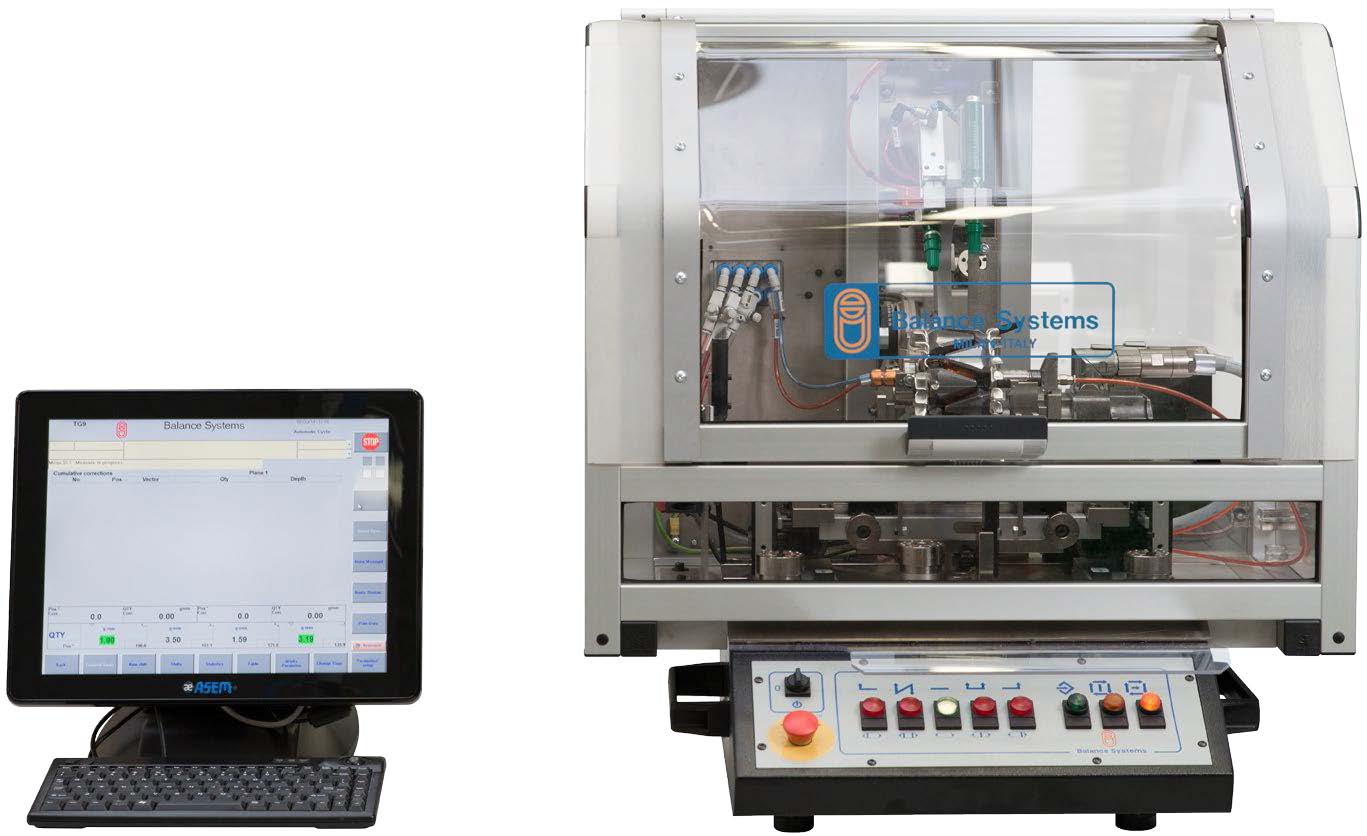

Manual balancing machine for alternators rotors

Features
  • MK3-A is a manual balancing machine suitable for measuring the unbalance of alternators rotors on two planes (dynamic) or on one plane (static).
  • The correction of the unbalance is carried out manually by adding or removing material.
  • The measuring unit is equipped with all the devices and instruments necessary for a quick and safe changeover.
  • Software is available to support the operator to correct unbalances by drilling.
  • The standard machine includes SPC, diagnostics, safety shield.
Advantages

  • High measuring precision.
  • High balancing precision
  • User friendly
  • Quick and precise changeover through preset mechanical stops

Alternators rotors, Automotive Components, Balancing machines

Product Description

Technical data
Max rotors weight: 3 kg (6,61 lb)
Parts diameters : 20-120 mm (0,79-4,72 in)
Stack lamination height : 20-80 mm (0,79-3,15 in)
Unbalance measuring time: 9 s
Controlled by: Industrial PC
Measuring accuracy: 0.1 gmm/kg max (0,04 oz.in/lb)
Power supply voltage: 110-240 V 50/60 Hz
Power requirement: 0.5 kW



Options
Table
Tele-Service
Printer
Manual correction by a stand-alone drilling unit

Additional Information

Tipo di automazione

Manual
