MK3-MV

MK3-MV

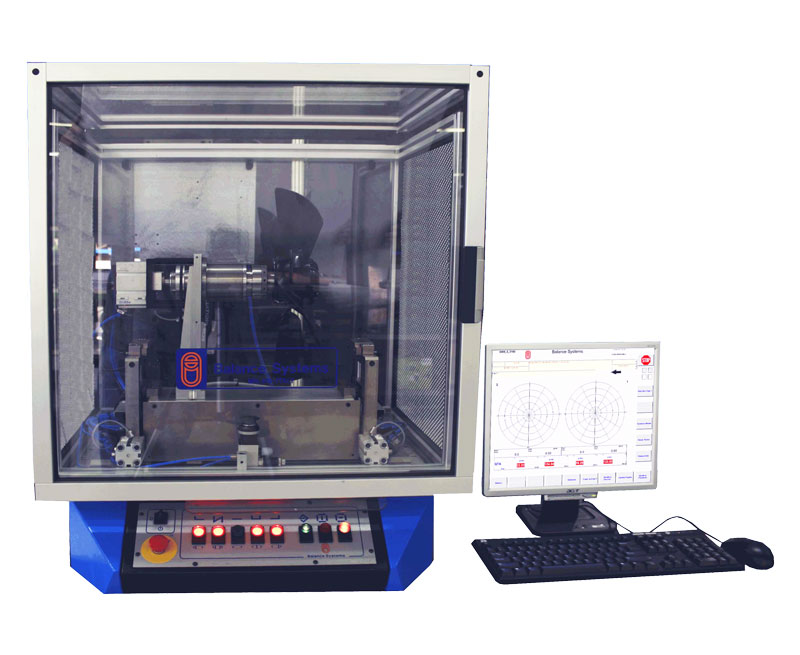

Manual balancing machine

Features
  • Manual balancing machine able to measure the unbalance of rotatingparts on either two planes (dynamic) or on one plane (static).
  • The correction of the unbalances must be carried out manually and it can be performed by adding or removing material.
  • This machine is suitable for laboratory purposes, or for small production runs.
  • The MK3-MV balancing machine is made up mainly of: measuring unit equipped with its unbalance measuring electronics, control PC, safety guard according to the parts to be balanced.
Advantages

  • Compact dimension
  • High unbalance measuring precision
  • High balancing precision
  • Quick return of investment
  • User friendly

Axial fans, Balancing machines, Building Technology, Tangential fans

Product Description

Technical data
Max weight of the fan: 3 kg
Max outside diameter of the fan: 380 mm
Max fan wideness: 120 mm
Measuring time: 10-20 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg max
Power Supply Voltage: 110-240 V



Options
Table
Industrial PC
SPC/SW and printer
Modem + Teleservice

Additional Information

Tipo di automazione

Semi-automatic
