RB100

RB100

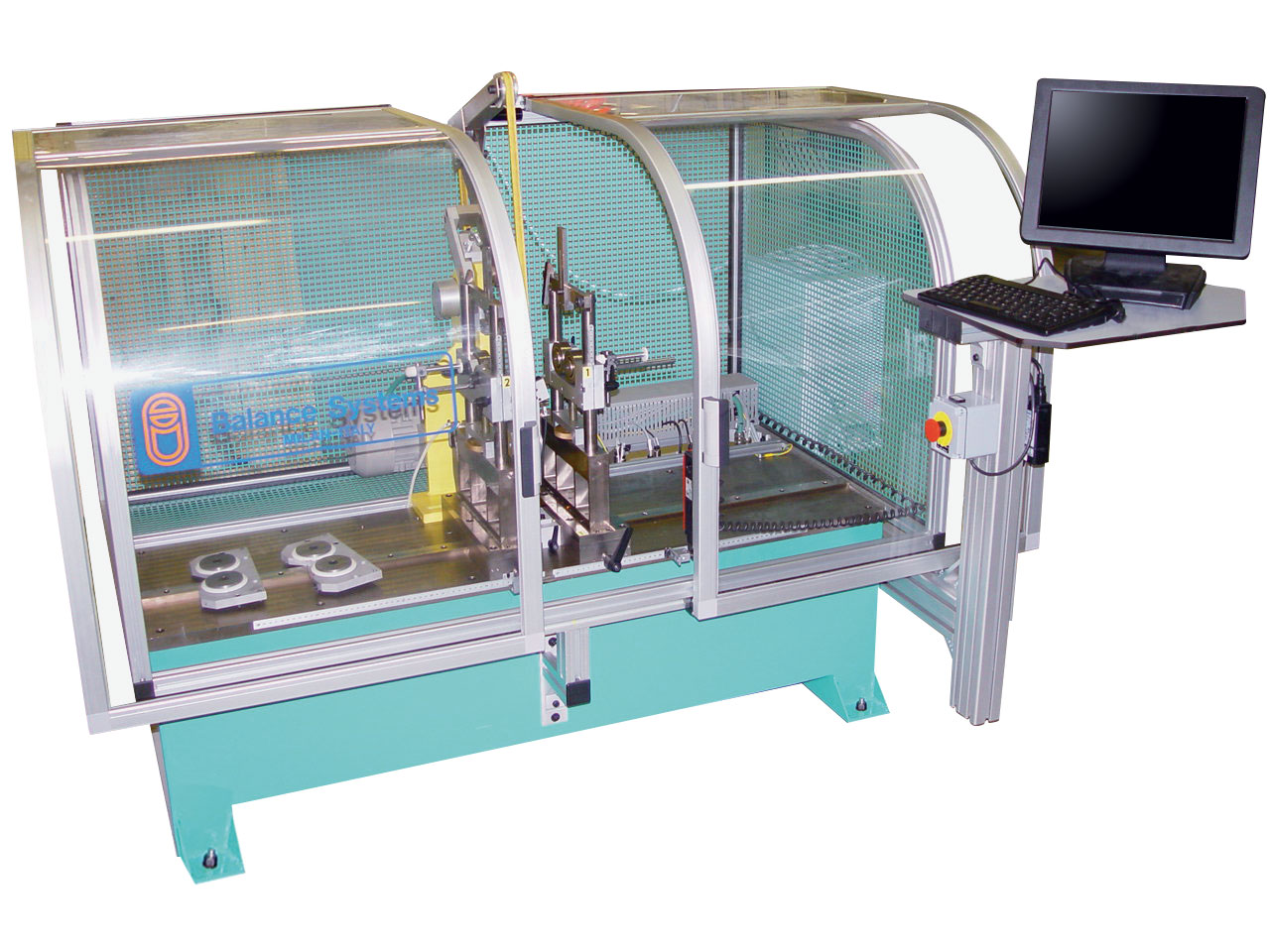

Manual balancing machine

Features
  • The RB100 is a universal horizontal balancing machine provided with hard bearings support. It is capable of balancing on two planes (dynamic) or on a single plane (static) a wide range of cylindrical rotors, shafts, spindles, etc. weighting between 2 and 100 kilos (4.41 lb and 220.46 lb).
  • Operating interface by industrial PC with touch screen.
  • The correction of the unbalances is carried out manually and it is performed by an operator through material addition or removal.
  • High level of flexibility and quick changeover.
Advantages

  • High level of flexibility
  • High measuring precision
  • High balancing precision
  • Quick changeover
  • User friendly

Balancing machines, Grindstones, Industrial electric motors, Machine tools, Rotors and armatures for heavy duty industry, Rotors for asynchronous motors

Product Description

Technical data
Max rotor weight 100 Kg (220.46 lb)
Max rotor diameter ( workable ) 550 mm (21.65 in)
Max diameter driven by belt 180 mm (7.09 in)
Diameter of rotors journals 8-80 mm (0.31-3.15 in)
Controlled by Industrial PC
Drive systems Loop belt
Measuring precision 0.1 gmm/kg max (0.04 oz.in/lb)
Power supply 110-230V 50/60Hz
Machine dimensions (LxWxH) 1.465 x 1.270 x 1.333 mm
(57.68 x 50 x 52.48 in)
Machine weight 700 Kg (1,543.24 lb)



Options
Certified master
Printer
Tele-service

Additional Information

Tipo di automazione

Manual
