SBM6

SBM6

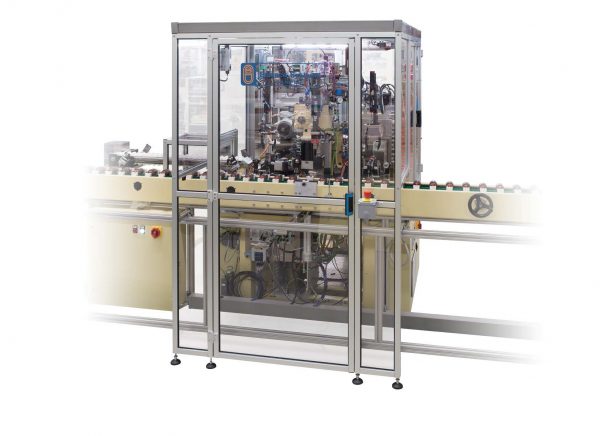

Automatic balancing machine

Features
  • Fully automatic balancing machine for armatures of electric motors.
  • It is composed of: a measuring unit, a milling unit for left and right planes and one audit unit.
  • Standard configuration with milling in length and depth.
  • The machine can be delivered (upon request) with “V” or polar cutters.
  • Operator interface by industrial PC (Windows™).
  • Option such as vacuum system for milling chips, reject conveyor, SPC and printer, teleservice
Advantages

  • Compact dimensions
  • High measuring precision
  • High balancing precision
  • User friendly
  • Quick return on investment

Armatures for DC servomotors, Armatures for garden tools, Armatures for grinding machines, Armatures for radiator cooling, Armatures for seats and rear-view mirrors, Armatures for small home appliances, Armatures for universal washing machine motors, Armatures for vacuum cleaners, Armatures for window lifts and sunroofs, Armatures for wipers, Automotive Components, Balancing machines, Fuel pump armatures, Home appliances, HVAC armatures, Industrial electric motors, Power Tools, Power tools armatures, Rotors for asynchronous motors for washing machines, Starter motors armatures

Product Description



Technical data
Max armatures weight: 1 kg (2,20 lb)
Outside diameter of the armatures: 25-60 mm (0,98-2,36 in)
Lamination stack height: 20-60 mm
Cycle time: (on two planes) < 12 s
Controlled by: Industrial PC
Measuring precision: 0.1 gmm/kg max (0,04 oz.in/lb)
Balancing methods: Polar or vectorial milling in length and depth
Power supply: 380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH): 1570 x 1300 x 1800 mm (61,81 x 51,18 x 70,87 in)



Options
Reject conveyor
Idustrial vacuum system for milling chips removal
SPC/SW
Printer
Teleservice
Automatic production line integration

Additional Information

Tipo di automazione

Automatic
