SDM4A-I

SDM4A-I

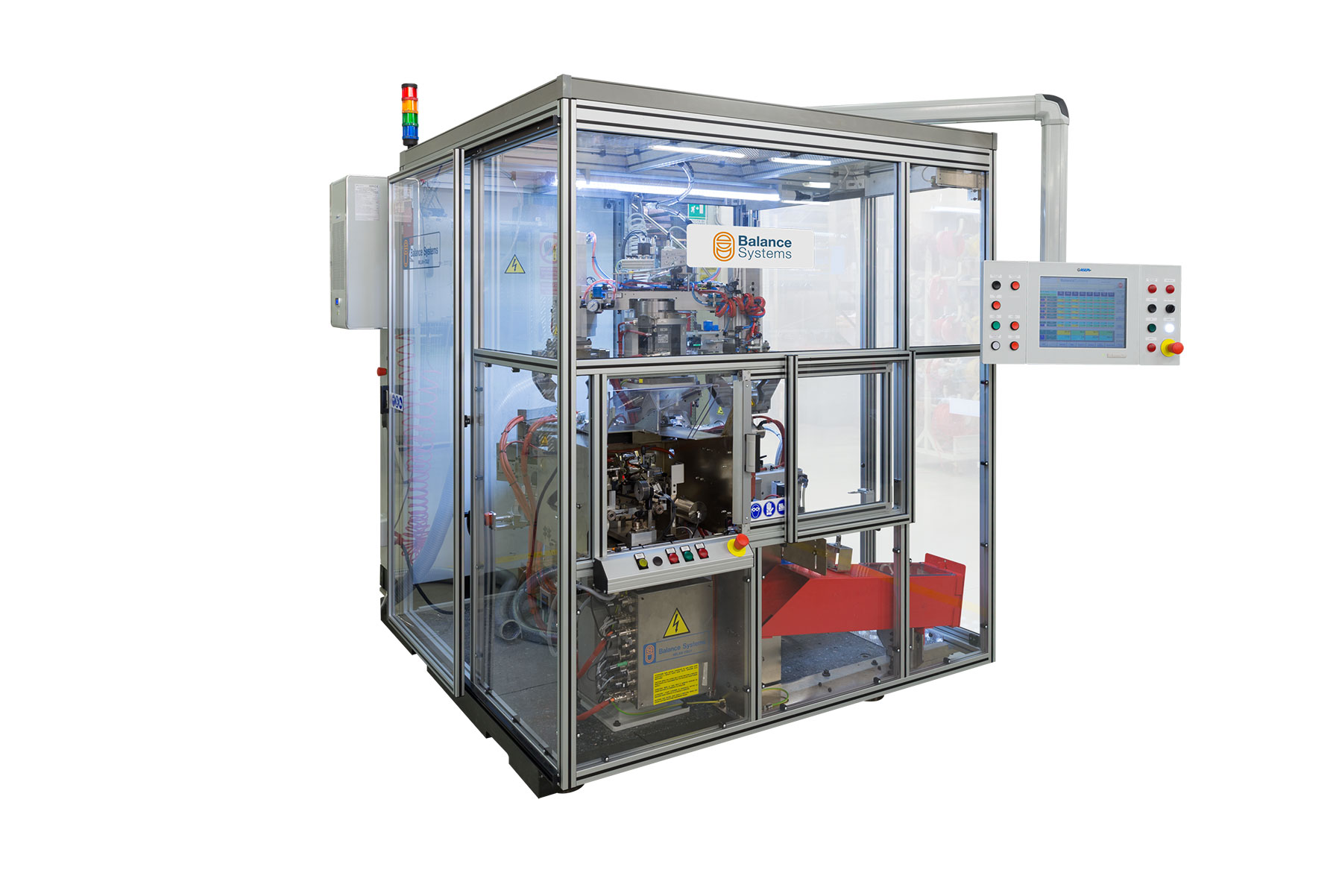

Semi-automatic balancing machine

Features
  • Semi automatic balancing machine, specifically developed to balance rotors of alternators  and similar rotating parts, in a completely automatic way on two planes (dynamic). The unbalances are corrected by removing material by inclined drilling.

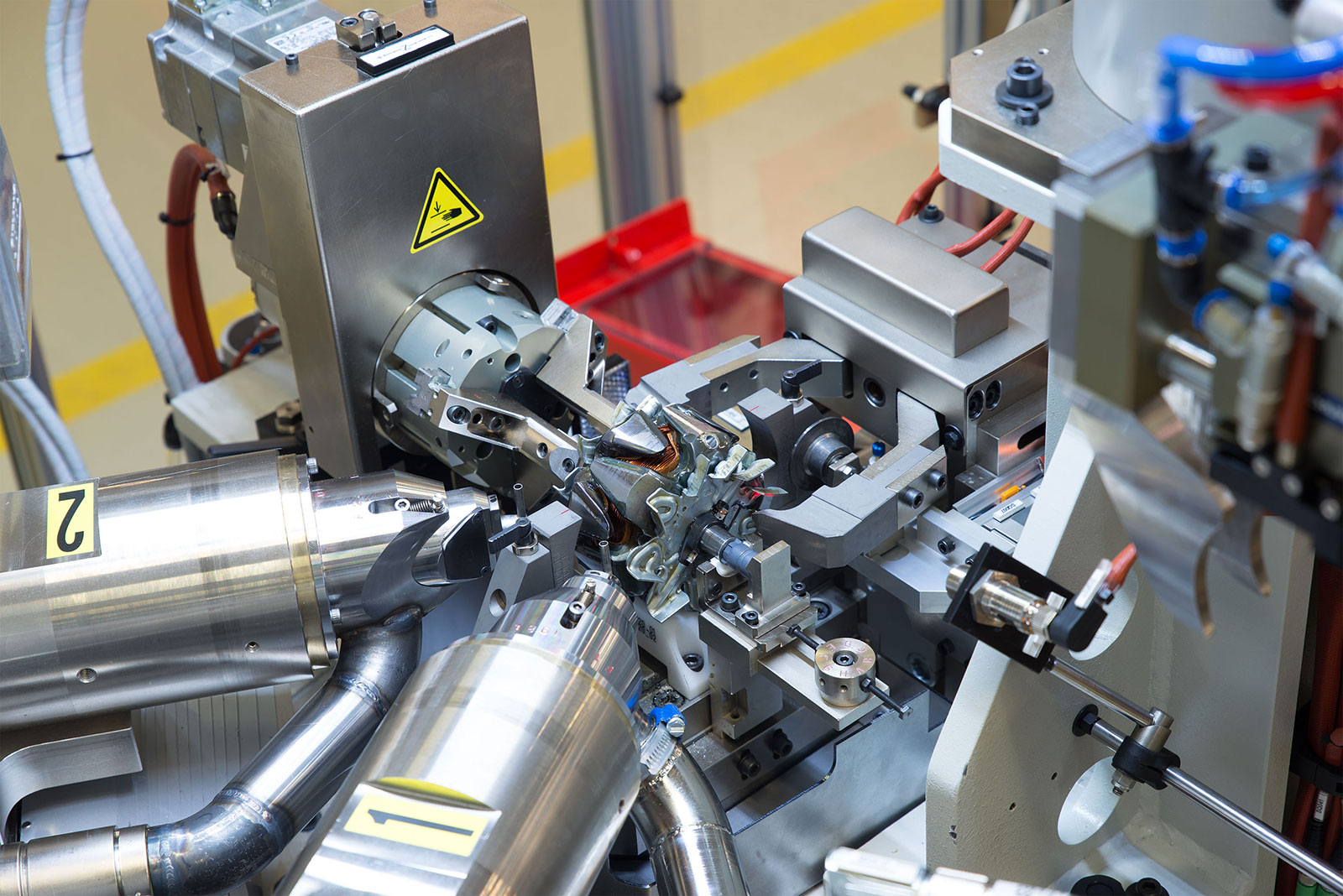

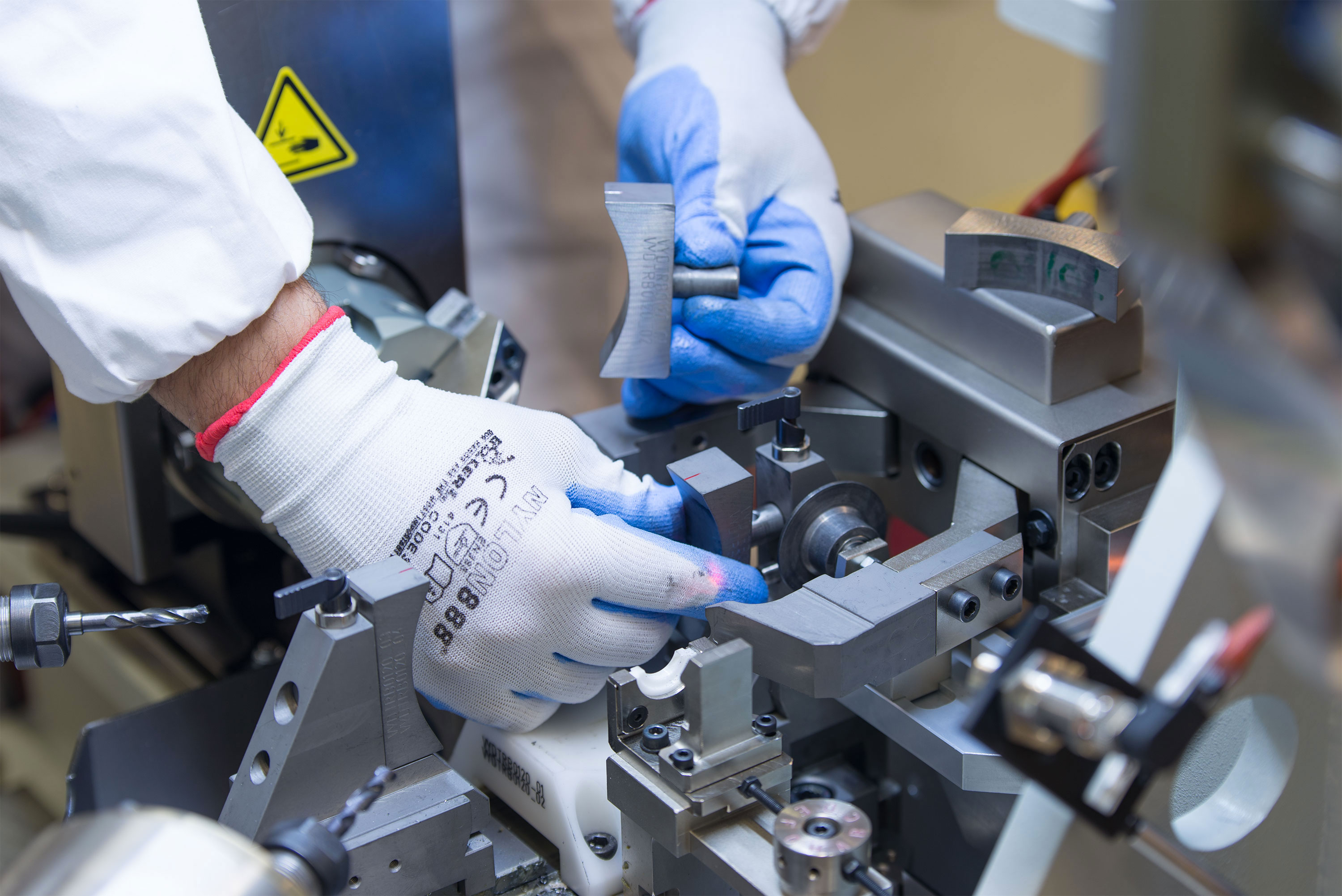

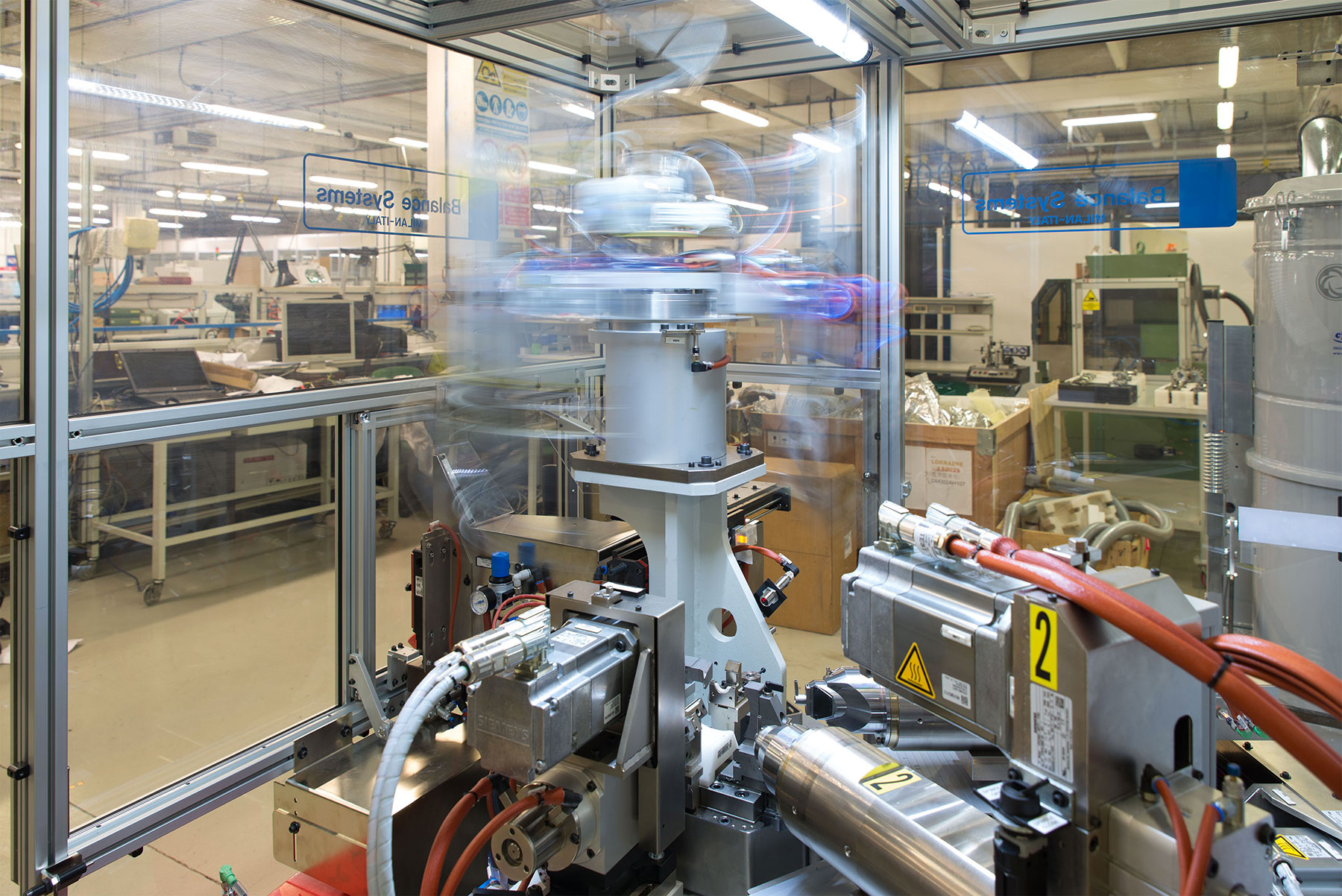

  • It is composed of: one measuring unit, two drilling units ( one for each balancing plane ) and rotary table with pneumatic pliers for parts manipulation, from measuring unit to drilling units and vice versa.
  • Operator interface by industrial PC
  • High level of flexibility and quick changeover
Advantages

  • Automatic set-up
  • High level of flexibility
  • High level of repeatability and precision of the unbalance measuring
  • Diagnostic and preventive maintenance program
  • Quick changeover
  • High level of reliability
  • User friendly

Alternators rotors, Automotive Components, Balancing machines

Product Description



Technical data
Max rotor weight 4Kg (8,82 lb)
Rotors diameter 90 – 115 mm (3.54 – 4.53 in)
Stack lamination height 40 – 100 mm (1.57 – 3.94 in)
Machine cycle time
(with two holes at maximum deepness per plane)
20 sec.
plus operator handling time
Controlled by Industrial PC
Measuring precision 0.1gmm/kg max (0.04 oz.in/lb)
Balancing method Inclined drilling 45° to 60°
Power supply 380V to 480V three-phase 50/60Hz
Machine dimensions (LxWxH) 2150 x 1800 x 2200 mm (84.65 x 70.87 x 86.61 in)



Options
Device to balance rotors with ball bearings
Industrial Vacuum cleaner for drilling chips removing
SPC/ SW
Printer
Tele-service
Rejected parts storage

Additional Information

Tipo di automazione

Semi-automatic
