BVK4-5-3R

BVK4-5-3R

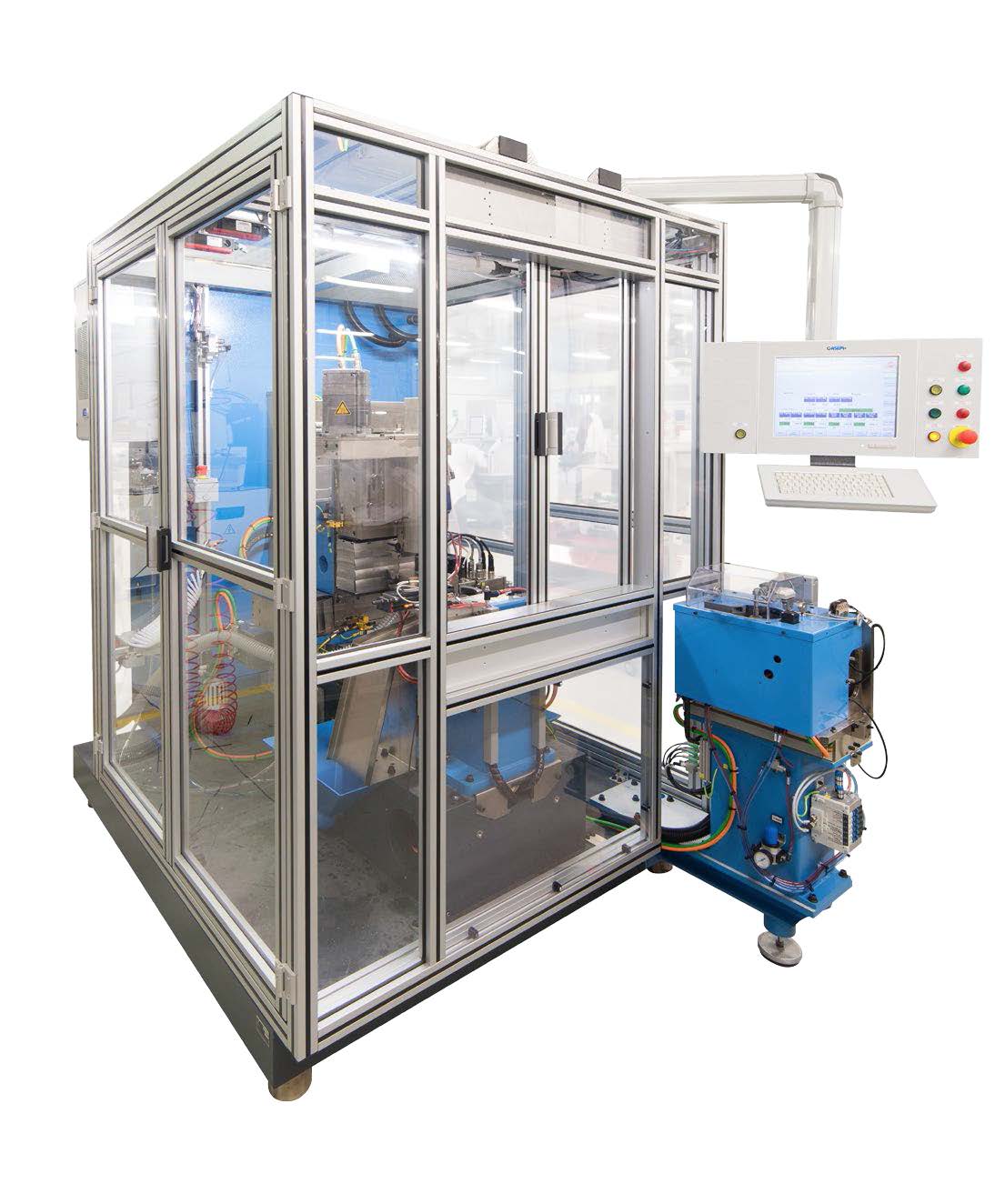

Semi-automatic balancing machine

Features

Semi-automatic balancing machine, specifically developed for balancing rotors for brushless motors and similar rotating parts, in a completely automatic way on two planes (dynamic).
The unbalance is automatically corrected by removing material as an outcome of radial milling.
Parts manipulation performed by the operator.
Operator interface by industrial PC.
High level of flexibility and quick changeover.

Advantages

Automatic set-up
High level of flexibility
High level of repeatability and precision of the unbalance measuring
Diagnostic and preventive maintenance program
Quick changeover
High level of reliability
User friendly

Balancing machines, Industrial electric motors, Rotors for brushless motors.

Product Description

Technical data
Max rotor weight:	3 kg (6,61 lb)
Rotor diameter:	50-140 mm (1,97-5,51 in)
Stack lamination height:	20-70 mm (0,79-2,76 in)
Max production rate:	120 pcs./hour
Controlled by:	Industrial PC
Measuring precision:	0.1 gmm/kg max
Balancing method:	Radial milling
Power supply:	380-480 V three-phase 50/60 Hz
Machine dimensions (LxWxH):	1500 x 2500 x 2200 mm (59,06 x 98,43 x 86,61 in)

Options

Re-checking unit

Industrial Vacuum cleaner for milling chips

SPC/SW

Printer

teleservice

Marking device

Additional Information

Tipo di automazione	Semi-automatic
