VM25

Modular multi-function system for grinding machine processes

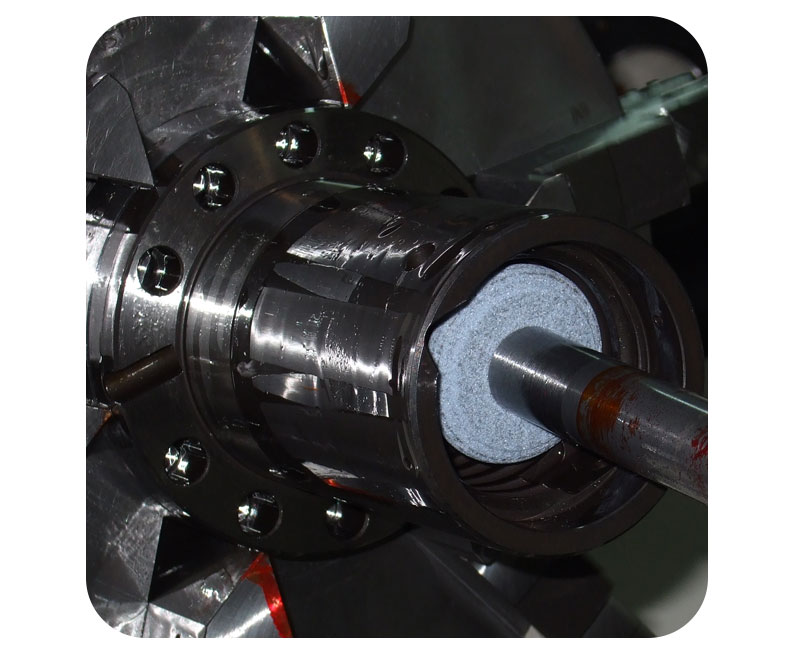

The VM25 is a modular fully programmable system designed for high performances applications in grinding machines. It is able to provide solutions for:

– One and two plane automatic balancing of the grinding spindle

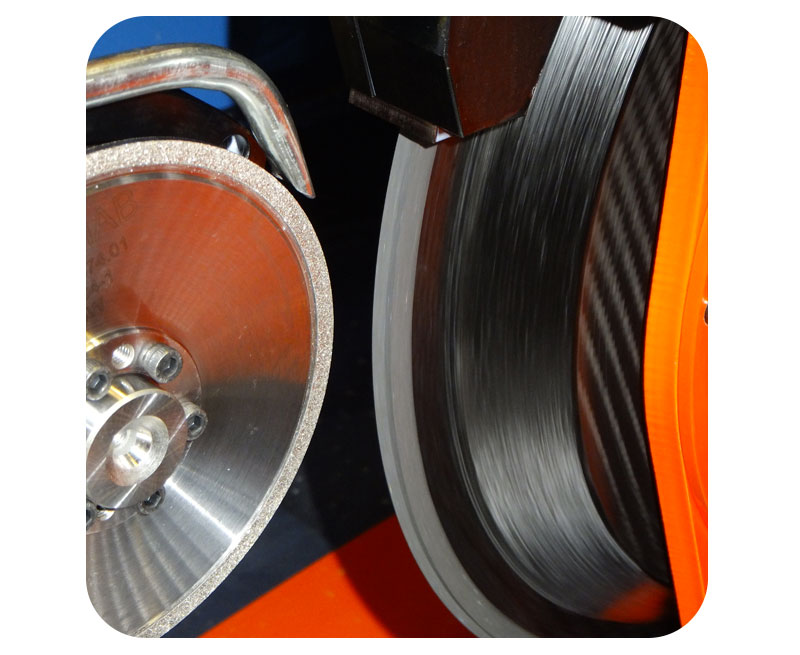

– Touch detection to control the grinding wheel-work piece and grinding wheel-dresser contacts, by using acoustic emission and/or power sensors

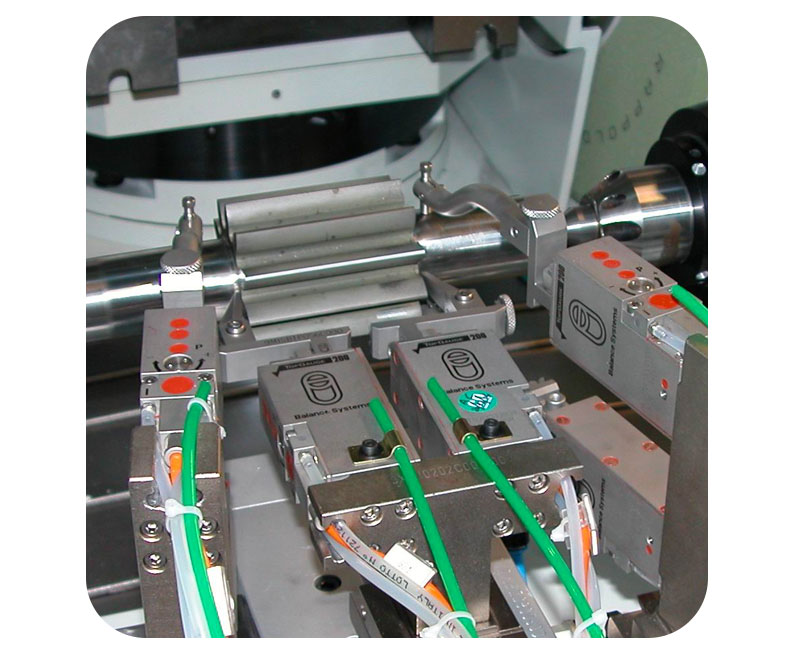

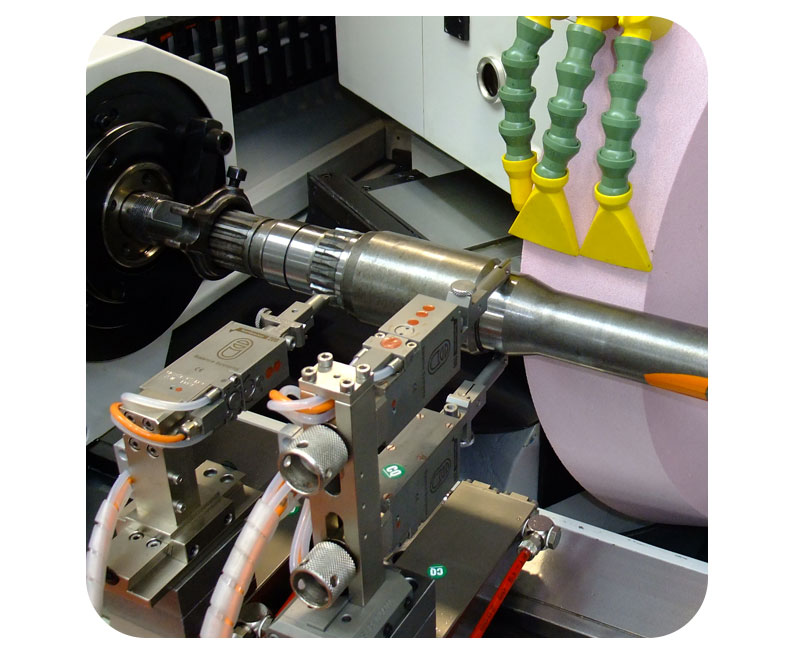

– In-process and post-process gauging (absolute or comparative)

Features

Modular setup fited to the machine architecture on which it is installed
It is available in several configurations: table or remote control unit
User’s graphic interface based on ISO symbols
Total integration with the machine controller (commands and remote programming)
TCP/IP connectivity for service operations and remote diagnostic
It is delivered with the “VM25 Service” software application for backup, restore and software upgrade
Each installed function is fully independent. In case that a function is temporarily not available, it can be disabled and the remaining system can continue to operate
A functional upgrade can be made at any time

Benefits

Ergonomic and easy to setup
Decisive in optimizing the production process and the quality of the machine
Extends lifetime of the machine components (spindle, grinding wheel and dressing tool), reducing the environmental impact
Does not require surveillance
Can be installed on any type of grinding machine, both new and retrofitting

Automatic balancer on 1 plane by balancing head built-in spindle mounted, Automatic balancer on 1 plane by external balancing head flange mounting type, Automatic balancer on 2 plane by balancing heads built-in spindle mounted, Automatic balancer on 2 plane by external balancing heads flange mounting type, Axial positioning (flagging) on interrupted surface, Axial positioning (flagging) on smooth surface, Balancing, Control systems, Dressing process control by acoustic emission (AE) sensors, Gauging, In-Process roundness and shape analysis, Outer / inner diameter on interrupted surface, Outer / inner diameter with absolute gauge(range 90mm, 200mm, 300mm, etc.), Outer / inner multi-diameter (wide-range w/o re-tooling), Pre-balancing on 1 plane, Pre-balancing on 2 plane, Smooth inner diameter (continuous surface), Smooth outer diameter (continuous surface), Taper, Thick with or w/o overstock distribution, Thickness calibration, Touch Detection, Touch detection between grinding wheel and work piece by acoustic emission (AE) and power sensor sensors (Gap & Crash), Touch detection between grinding wheel and work piece by acoustic emission (AE) sensors (Gap & Crash), Touch detection between grinding wheel and work piece by power sensors (Gap & Crash).

Description
DATASHEET - CONTACT INFORMATION

Product Description

System features

Each system is able to manage in one application:

Up to 4 one and two plane balancing functions
Up to 4 touch detection functions
Up to 4 in-post process gauging functions (absolute or comparative)
Profibus DP or profinet interfaces

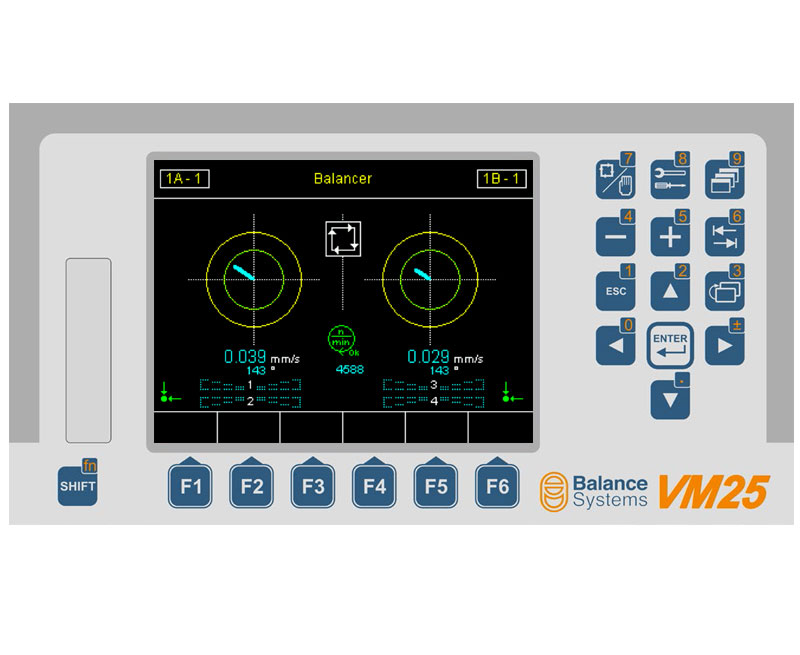

The VM25 control unit is provided with a panel with color display and a VM25 HMI software application for PC ®Windows. Both of them can be used by the operator to configure the application through menu and to manually control the entire device.

The PC ®Windows VM25 HMI software package includes graphic libraries, allowing the integration of the user panel into the HMI application of the OEM machine.

Moreover, the VM25 HMI is homologated and certified by ®Siemens PCU50 Sinumerik Advanced and operate with ®Windows XP and 7. The interface with the machine controller can be realized both by traditional digital I/O and by fieldbus “profibus DP” and “profinet”.
